Surgical instrument sterilization tray YWD-4074

for dental instrumentsfor instrumentssilicone

Item Name

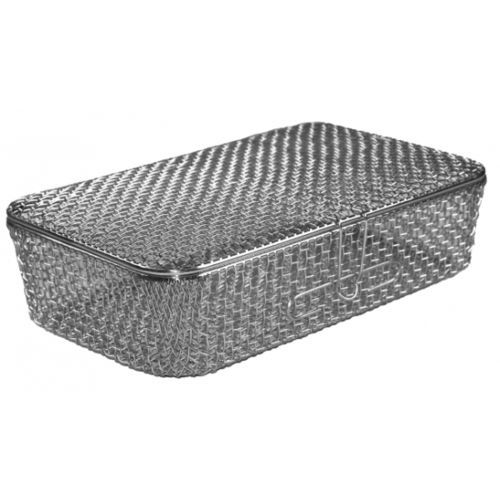

Wire Mesh Tray YWD-4074

Product Overview
Tray designed to contain a wide variety of surgical and microdissection instruments during washing, sterilization, storage and transportation. Mesh size is approximately 5 mm x 5 mm. Compatible with steam and gas plasma sterilization; suitable for instruments requiring maximum exposure to sterilizing media.

Uses
Designed for use in instrument processing workflows: handling, washing, sterilizing, drying, storing and transporting small surgical and dental instruments while ensuring optimal steam and chemical penetration.

Features

• Manufactured in medical-grade 304 stainless steel
• CNC laser cutting, nibbling and CNC bending for precise dimensions
• Electropolished finish with burr-free edges to protect wraps and users
• Available silicone and metal inserts in distinct colors for instrument organization
• Silicone stands/cradles minimise surface contact and maximise instrument exposure for cleaning and drying
• Optional drop/holding handles; baskets and trays are stackable
• High resistance to corrosion and mechanical wear; designed for long service life through repeated sterilization cycles

Construction Details
Manufactured from 304 non-magnetic knitted/woven spot-welded solid wire mesh with available wire diameters: 1.2 mm, 1.0 mm and 0.75 mm. Smooth rounded corners. Options include single frame, double frame and detention frame lids with optional locks. Side perforations ensure maximum steam penetration.

Table
Size example: YWM-8900 — 410 x 260 x 110 mm

Additional Product Info
Surface finishes: mirror, luster, satin, brushed and colored options available
Cutting method: Laser cut
Stackable: All trays are stackable

Technical specifications

• Product type: Wire mesh sterilization tray
• Material: 304 stainless steel (medical grade)
• Mesh size: approximately 5 mm x 5 mm
• Wire diameters available: 1.2 mm, 1.0 mm, 0.75 mm
• Manufacturing: CNC laser cutting, nibbling, CNC bending
• Finish: Electropolished; options include mirror, luster, satin, brushed, colored
• Compatibility: Steam and gas plasma sterilization
• Features: Burr-free edges, silicone inserts/stands available, stackable design, optional lids with locks
• Durability: Designed for 1000+ sterilization cycles
