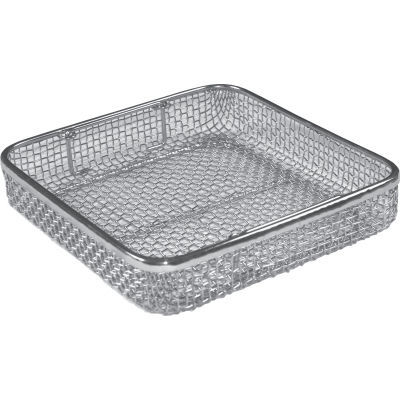

Surgical instrument sterilization tray YWD-4050

for instrumentsfor dental instrumentsautoclavable

Item Name
Wire mesh sterilization tray

Item Description
Designed to hold and contain small microdissection and surgical instruments during washing, sterilization, storage and transportation. Mesh size approx. 5 mm x 5 mm. Compatible with steam and gas plasma sterilization. Model YWD-4050 dimensions: 255 x 245 x 50 mm.

Uses
Designed to contain a wide variety of instruments during reprocessing and storage; ensures safe instrument retention during handling and sterilization while helping preserve instrument integrity and service life.

Features

• Manufactured from medical-grade stainless steel 304.
• Precision fabrication: CNC laser cutting, nibbling and CNC bending.
• Electropolished surface for corrosion resistance and improved cleanability.
• Burr-free construction and rounded corners to protect wraps and reduce operator injury risk.
• All exposed edges softened to prevent damage to instruments and handlers.
• Available in a range of sizes and layouts to accommodate surgical and dental instrument sets.
• Durable design; can withstand 1000+ sterilization cycles without loss of shape or function.
• Woven/knitted or spot-welded solid wire mesh with wire diameter options: 1.2 mm, 1.0 mm and 0.75 mm.
• Perforated sides and open mesh allow maximum flow and penetration of steam and sterilant.
• Optional drop and holding handles; baskets are stackable for efficient storage.
• Silicone cradles/strips and colored inserts available to secure instruments and prevent unwanted movement.
• Optional single-frame, double-frame and detention-frame lids with lock mechanisms.
• High resistance to corrosion and mechanical wear; acid-resistant construction.

Available sizes (model → dimensions)
YWD-4050 | 255 x 245 x 50 mm
YWD-4070 | 255 x 245 x 70 mm
YWD-4100 | 255 x 245 x 100 mm
YWM-9100 | 250 x 240 x 50 mm
YWM-9110 | 250 x 240 x 70 mm
YWM-9130 | 250 x 240 x 60 mm

Specifications

• Model: YWD-4050 (255 x 245 x 50 mm)
• Material: Stainless Steel 304 (medical grade)
• Surface finish: mirror, luster, satin, brushed and colored options
• Cutting: laser cut
• Mesh type: woven/knitted or spot-welded solid wire mesh
• Mesh size: 5 x 5 mm
• Mesh wire diameter options: 1.2 mm (18 SWG), 1.0 mm, 0.75 mm
• Corner: rounded
• Polish: electropolished with protection strip
• Stackable: yes
• Compatibility: steam and gas plasma sterilization
