Instrument sterilization tray YWD-3050

for surgical instrumentsfor dental instrumentswire

Item Name

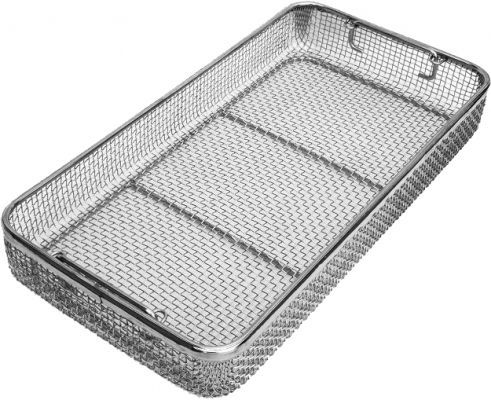

Wire Mesh Instrument Tray YWD-3050

Item Description
Designed to contain a wide variety of instruments during washing, sterilization, storage and transportation. Mesh size is approximately 5 x 5 mm. Compatible with steam and gas plasma sterilization. Suitable for handling, washing, sterilizing and storing small microdissection and surgical instruments.

Uses

• Contain instruments during washing, sterilization, storage and transportation
• Provide secure storage and protection for fine surgical instruments
• Allow maximum flow of sterilization chemicals, steam and heat

Features

• Made from 304 stainless steel (non-corrosive, surgical grade)
• Manufactured using CNC laser cutting, nibbling and CNC bending
• Electropolished finish
• Available in a wide range of sizes and designs to hold surgical and dental instruments
• All exposed edges are deburred to avoid injury during handling and sterilization
• Easy maintenance and repair; burr-free to protect wraps and prevent damage
• Range of silicone and metal instrument organizers in distinct colors and fixtures
• Each tray passes rigorous quality testing parameters
• Long service life: withstands 1000+ sterilization cycles without losing shape or function
• Made from knitted/woven spot-welded 304 wire mesh available in 1.2 mm, 1.0 mm and 0.75 mm wire diameters
• Stackable baskets; optional drop and holding handles
• Silicone stands/cradles enable thorough cleaning and drying with minimal surface contact and maximum instrument exposure
• Silicone strips secure instruments in the container to prevent unwanted movement
• Smooth rounded corners; single-frame, double-frame and detention-frame lids available with optional locks
• Side perforations for maximum steam penetration; high resistance to corrosion and mechanical damage; all trays made from acid-resistant stainless steel

Available sizes
YWD-3050 | 405 x 255 x 50 mm
YWD-3070 | 405 x 255 x 70 mm
YWD-3100 | 405 x 255 x 100 mm
YWM-9004 | 400 x 370 x 50 mm
YWM-9005 | 400 x 300 x 50 mm
YWM-9016 | 400 x 250 x 50 mm
YWM-9017 | 450 x 220 x 50 mm
YWM-9106 | 400 x 250 x 70 mm

Technical specifications

• Material: Stainless Steel 304
• Surface finish: mirror, lustre, satin, brushed and colored
• Cutting: Laser cut
• Stackable: All trays are stackable
• Mesh type: Woven
• Mesh size: 5 x 5 mm
• Mesh wire: 1.2 mm (18 swg) (also available in 1.0 mm & 0.75 mm)
• Corner: Rounded
• Polish: Electropolished; electro polish protection strip
