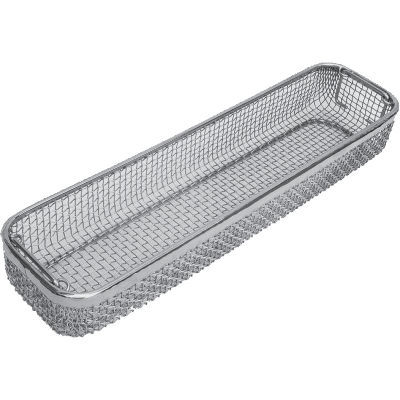

Dental instrument sterilization tray YWD-4065

for surgical instrumentsfor instrumentsautoclavable

Product name / Intended use:

Wire mesh tray model YWD-4065 designed to contain and organize small surgical and microdissection instruments during washing, sterilization, storage and transport. Mesh aperture approximately 5 mm × 5 mm. Compatible with steam and gas-plasma sterilization processes and automatic washers.

Key features:

• 304 medical-grade stainless steel (non-corrosive, virgin) construction.
• CNC laser cutting, nibbling and CNC bending for precise dimensions.
• Electropolished surface for corrosion resistance and ease of cleaning.
• Available in multiple sizes and internal layouts to accommodate surgical and dental instrument sets.
• All exposed sharp edges are dulled and burr-free to protect handlers and packaging.
• Simple maintenance and repair procedures.
• Compatible with a range of instrument management inserts (silicone and metal) in different colors and fixtures.
• Durability: designed to withstand 1000+ sterilization cycles without losing shape or function.
• Manufactured from spot-welded knitted/woven solid wire mesh in wire diameters 1.2 mm, 1.0 mm and 0.75 mm.
• Open mesh and side perforations allow maximum flow of steam and sterilant; trays are stackable.
• Optional drop and holding handles; single-frame, double-frame and detention-frame lids available with locks.
• Silicone stands/cradles and silicone strips permit secure instrument positioning with minimal contact for effective cleaning and drying.
• Smooth rounded corners and acid-resistant construction reduce risk of mechanical damage.

Additional product details:

Size options and detailed dimensions available in specifications. Surface finishes: mirror, luster, satin, brushed and colored. Cutting method: laser cut. All trays designed to be stackable for storage and transport efficiency.

Technical specifications:

• Material: 304 medical-grade stainless steel (non-corrosive, virgin).
• Mesh size: approximately 5 mm × 5 mm.
• Wire diameters available: 1.2 mm, 1.0 mm, 0.75 mm.
• Manufacturing: CNC laser cutting, nibbling, CNC bending; spot-welded knitted/woven wire mesh.
• Surface finish: electropolished; available finishes include mirror, luster, satin, brushed and colored.
• Sterilization compatibility: steam and gas-plasma sterilization; suitable for automatic washing and sterilization cycles.
• Durability: designed to withstand 1000+ sterilization cycles without loss of form or function.
• Safety: burr-free edges, smooth rounded corners, dulled exposed edges to prevent injury and protect wraps.
• Accessories/options: silicone stands/cradles, silicone and metal inserts (multiple colors), drop/holding handles, optional lids with locks.
• Stackable: yes.
• Example sizes / related model references: YWM-8500 | 500 x 150 x 100; YWM-8950 | 850 x 200 x 100.
