Surgical instrument sterilization tray YWD-4063

for dental instrumentsfor instrumentssilicone

Item Name

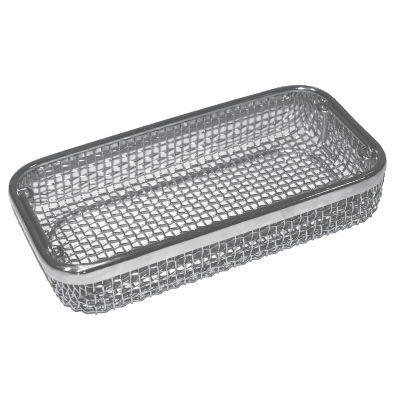

Wire Mesh Sterilization Tray YWD-4063

Uses
Designed to contain a wide range of surgical and dental instruments during washing, sterilization, storage and transport. Mesh size approximately 5 mm x 5 mm to ensure maximum flow of sterilizing agents and steam. Compatible with steam and gas plasma sterilization and suitable for automated washing processes.

Features

• Manufactured from 304 medical-grade stainless steel (non-corrosive).
• Precision production by CNC laser cutting, nibbling and CNC bending.
• Electropolished surface finish for corrosion resistance and easy cleaning.
• Knitted/woven spot-welded wire mesh available in 1.2 mm, 1.0 mm and 0.75 mm wire diameters.
• Mesh approximately 5 mm x 5 mm to allow optimal circulation of sterilization media and heat.
• Burr-free construction and rounded edges to protect wraps and users.
• Options for silicone stands/cradles, colored silicone or metal inserts to secure instruments.
• Available with drop or holding handles; lids: single-frame, double-frame or detention-frame with optional locks.
• Stackable design with side perforations to maximize steam penetration and optimize storage.
• Designed for easy maintenance and long service life (withstands 1000+ sterilization cycles without loss of shape or function).

Size
YWD-5050 | 255 x 120 x 50
YWD-5070 | 255 x 120 x 70

Additional product details
Surface Finish: Mirror, luster, satin, brushed and colored
Cutting: Laser Cut
Stackable: All trays are stackable

Technical specifications

• Material: 304 medical-grade stainless steel (non-corrosive).
• Mesh size: ≈ 5 mm x 5 mm.
• Wire diameters available: 1.2 mm, 1.0 mm, 0.75 mm.
• Manufacturing: CNC laser cutting, nibbling, CNC bending; spot-welded knitted/woven mesh.
• Surface treatment: Electropolished; available finishes: mirror, luster, satin, brushed and colored.
• Compatibility: Steam and gas plasma sterilization; suitable for automated washing systems.
• Safety: Burr-free construction; rounded/smooth corners; dulled exposed edges to prevent injury.
• Accessories: Silicone stands/cradles, silicone/metal inserts, optional handles and lids with locks.
• Design: Side perforations for steam penetration; stackable structure for storage and handling.
• Durability: Designed to withstand 1000+ sterilization cycles without loss of form or function.
