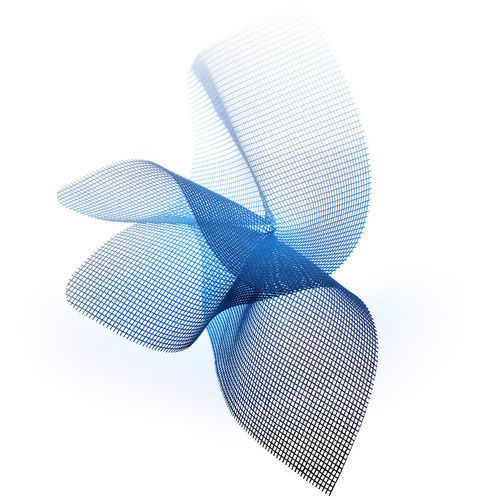

Ventral hernia prosthesis Swing-Mesh®

abdominalinguinal

Bi-dimensional polyester
Swing-Mesh® devices are intended for abdominal wall reinforcement in the treatment of ventral and inguinal hernias, by open or laparoscopic surgery.

Product details
SM2+: For laparoscopic or open surgery
SMA: Preferably used via laparoscopic totally extraperitoneal approach (TEP)

Key features

• Bi-dimensional knitted polyester (PET) prosthesis, impregnated with polyurethane (PUR) to maximize shape memory.
• Porous structure to favour tissue ingrowth and colonization.
• Semi-rigid for optimal abdominal fit.
• Shape memory for use in laparoscopic or open surgery.
• Elasticity and multidirectional mechanical properties.

Regulatory / References
Class IIb medical device

• SM2+ 0913 BM — 9 x 13 cm
• SM2+ 1114 BM — 11 x 14 cm
• SM2+ 1215 BM — 12 x 15 cm
• SM2+ 0913 MA — 9 x 13 cm
• SM2+ 1114 MA — 11 x 14 cm
• SM2+ 1215 MA — 12 x 15 cm
• SM2+ 1216 MA — 12 x 16 cm
• SM2+ 1515 S — 15 x 15 cm
• SM2+ 1520 S — 15 x 20 cm
• SMA 0913 D — 9 x 13 cm
• SMA 1115 D — 11 x 15 cm
• SMA 1216 D — 12 x 16 cm
• SMA 0913 G — 9 x 13 cm
• SMA 1115 G — 11 x 15 cm
• SMA 1216 G — 12 x 16 cm

Characteristics / technical specifications

• Weight: 113 g/m2
• Pore Size: 1.71 x 1.12 mm
• Porosity*: 86% (A) - 47% (C)
• Thickness: 0.54 mm
• Tensile Resistance: 284/562 N
• Average elongation: 59/54%
• Mean values given as an indication
• * According to S94-801
