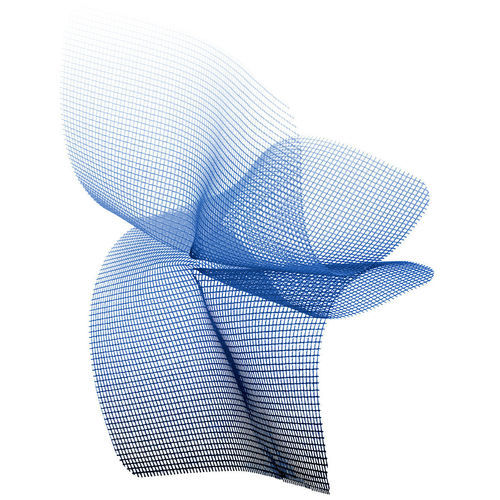

Inguinal hernia prosthesis wing-Mesh® SMH2

abdominalventral

Light polypropylene
Swing-Mesh® devices are indicated for abdominal wall reinforcement in ventral and inguinal hernia repair, suitable for open and laparoscopic approaches.

Key features

• Light knitted polypropylene (PP) monofilament prosthesis.
• Open porous structure to promote tissue ingrowth and colonization.
• Semi-rigid design for optimal conformity to the abdominal wall.
• Elasticity with multidirectional mechanical properties.

References
Onlay — Lichtenstein:
SMH2 5595 L — 5.5 x 9.5 cm
SMH2 5595-10 L — 5.5 x 9.5 cm ( x 10 )
SMH2 6513 L — 6.5 x 13 cm
SMH2 6513-10 L — 6.5 x 13 cm ( x 10 )
Other Onlay sizes:
SMH2 0611 S — 6 x 11 cm
SMH2 0611-10 S — 6 x 11 cm ( x 10 )
SMH2 1015 S — 10 x 15 cm
SMH2 1015-10 S — 10 x 15 cm ( x 10 )

Lap — TAPP/TEP:
SMH2 0913 MA * — 9 x 13 cm
SMH2 1114 MA * — 11 x 14 cm
SMH2 1215 MA * — 12 x 15 cm
SMH2 1216 MA * — 12 x 16 cm
SMH2 1013 MB * — 10 x 13 cm
SMH2 1115 MB * — 11 x 15 cm
SMH2 1216 MB * — 12 x 16 cm
SMH2 1515 S — 15 x 15 cm
SMH2 1515-10 S — 15 x 15 cm ( x 10 )

Ventral — large hernia:
SMH2 3030 S — 30 x 30 cm
SMH2 3030-05 S — 30 x 30 cm ( x 5 )

* Products available on request only.

Technical specifications

• Weight: 55 g/m2
• Pore size: 1.53 x 1.30 mm
• Porosity: 88% (A) - 62% (C) — *According to NF S94-801
• Thickness: 0.48 mm
• Tensile resistance: 244/335 N
• Average elongation: 40/62%
• Note: mean values given as an indication
