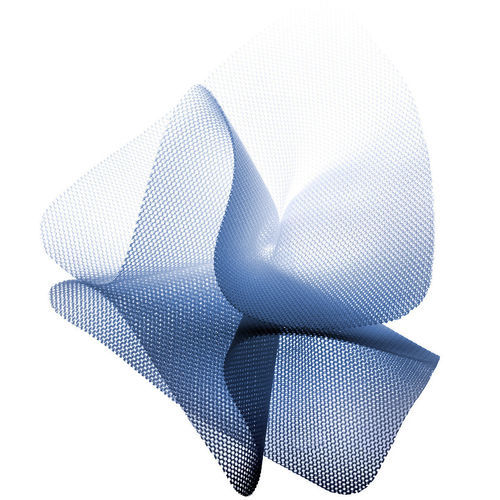

Ventral hernia prosthesis Swing-Mesh® SM3

abdominalinguinal

Material
Tri-dimensional polyester (PET) knitted in a honeycomb structure designed for reinforcement of the abdominal wall in ventral and inguinal hernia repair.

Description
Swing-Mesh® devices are intended for abdominal wall reinforcement for the treatment of ventral and inguinal hernias, via open or laparoscopic surgery (Lichtenstein, TAPP/TEP).

Key features

• Tri-dimensional «honeycomb» knitted multifilament polyester (PET) prosthesis.
• Porous structure to promote tissue ingrowth and colonization.
• Flexible conformation for optimal fit to the abdominal cavity.
• Elasticity and multidirectional mechanical properties.

Range & sizes
Onlay — Lichtenstein
SM3 5595 L — 5.5 x 9.5 cm
SM3 6513 L — 6.5 x 13 cm
SM3 0813 L — 8 x 13 cm
SM3 0813 A — 8 x 13 cm
SM3 0913 F — 9 x 13 cm

Lap — TAPP/TEP
SM3 1515 S — 15 x 15 cm

Ventral — Eventration
SM3 1520 S — 15 x 20 cm
SM3 3030 S — 30 x 30 cm

Product details
Weight - 120 g/m2
Pore Size - 1.59 x 1.41 mm
Porosity* - 92% (A) - 65% (C)
Thickness - 1.14 mm
Tensile Resistance - 226/319 N
Average elongation - 45/86%
Mean values given as an indication
* According to NF S94-801

Technical specifications

• Material: Polyester (PET), tri-dimensional honeycomb knit.
• Weight: 120 g/m2.
• Pore size: 1.59 x 1.41 mm.
• Porosity: 92% (A) - 65% (C) (according to NF S94-801).
• Thickness: 1.14 mm.
• Tensile resistance: 226/319 N.
• Average elongation: 45/86%.
• Indication: Abdominal wall reinforcement for ventral and inguinal hernias (open or laparoscopic procedures).
• Classification: Medical device Class IIb.
