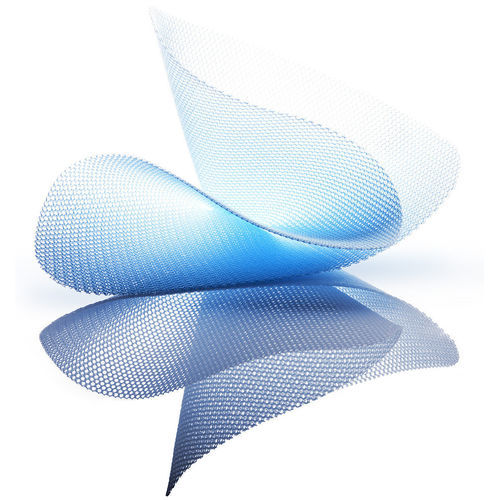

Ventral hernia prosthesis Swing-Mesh® SM3+

inguinalabdominal

Tri-dimensional Polyester
Swing-Mesh® devices are suitable for abdominal wall reinforcement of ventral or inguinal hernias treatments, via open or laparoscopic surgery.

Key features

• Tri-dimensional «honeycomb» knitted polyester (PET) prosthesis, impregnated with polyurethane (PUR) to maximize shape memory.
• Porous structure to favour tissue ingrowth and colonization
• Semi-rigid for optimal abdominal fit
• Shape memory for perfect use via laparoscopic or open surgery Elasticity and multidirectional mechanical properties

References (by surgical approach)
Onlay — Lichtenstein

• SM3+ 5595 L — 5.5 x 9.5 cm
• SM3+ 6513 L — 6.5 x 13 cm
• SM3+ 0813 A — 8 x 13 cm
• SM3+ 0813 L — 8 x 13 cm
• SM3+ 0812 L — 8 x 12 cm
• SM3+ 0913 F — 9 x 13 cm

Lap — TAPP/TEP

• SM3+ 0913 MA — 9 x 13 cm
• SM3+ 1114 MA — 11 x 14 cm
• SM3+ 1215 MA — 12 x 15 cm
• SM3+ 1216 MA — 12 x 16 cm
• SM3+ 0913 BM — 9 x 13 cm
• SM3+ 1114 BM — 11 x 14 cm
• SM3+ 1215 BM — 12 x 15 cm
• SM3+ 1013 MB — 10 x 13 cm
• SM3+ 1115 MB — 11 x 15 cm
• SM3+ 1216 MB — 12 x 16 cm
• SM3+ 1515 S — 15 x 15 cm

Ventral — Eventration

• SM3+ 1520 S — 15 x 20 cm
• SM3+ 3030 S — 30 x 30 cm

Notes
Class IIb medical device. Mean values given as an indication. *According to S94-801.

Characteristics / technical specifications

• Weight: 126 g/m2
• Pore Size: 1.49 x 1.32 mm
• Porosity: 91% (A) - 60% (C)
• Thickness: 1.09 mm
• Tensile Resistance: 227/318 N
• Average elongation: 50/90%
