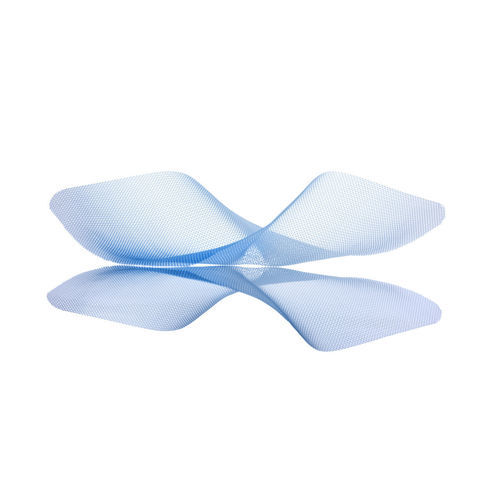

Abdominal hernia prosthesis Swing-Mesh® SMX

ventralinguinal

Description
Swing-Mesh® SMX is a knitted monofilament polypropylene surgical mesh intended for reinforcement of the abdominal wall in ventral and inguinal hernia repair, suitable for open or laparoscopic (TAPP/TEP) approaches.

Key features

• Standard knitted polypropylene (PP) monofilament prosthesis
• Porous structure to promote tissue ingrowth and colonization
• Semi-rigid design for optimal abdominal conformity
• Elasticity with multidirectional mechanical properties

Product details
Weight - 80 g/m2
Pore size - 0.7 x 0.7 mm
Porosity* - 85% (A) - 48% (C)
Thickness - 0.56 mm
Tensile resistance - 129/514 N
Average elongation - 118/77%

References
ONLAY — LICHTENSTEIN
SMX 5595 L — 5.5 x 9.5 cm
SMX 5595-10 L — 5.5 x 9.5 cm (x10)
SMX 6513 L — 6.5 x 13 cm
SMX 6513-10 L — 6.5 x 13 cm (x10)
SMX 0611 S — 6 x 11 cm
SMX 0611-10 S — 6 x 11 cm (x10)
SMX 1015 S — 10 x 15 cm
SMX 1015-10 S — 10 x 15 cm (x10)

LAP — TAPP/TEP
SMX 1515 S — 15 x 15 cm
SMX 1515-10 S — 15 x 15 cm (x10)

VENTRAL — EVENTRATION
SMX 3030 S — 30 x 30 cm
SMX 3030-05 S — 30 x 30 cm (x5)

Brochure
Swing-Mesh® SMX — SMX - V2 -09/2023

Technical specifications

• Material: Standard knitted polypropylene (PP) monofilament
• Weight: 80 g/m2
• Pore size: 0.7 x 0.7 mm
• Porosity: 85% (A) - 48% (C)*
• Thickness: 0.56 mm
• Tensile resistance: 129/514 N
• Average elongation: 118/77%

*According to S94-801
