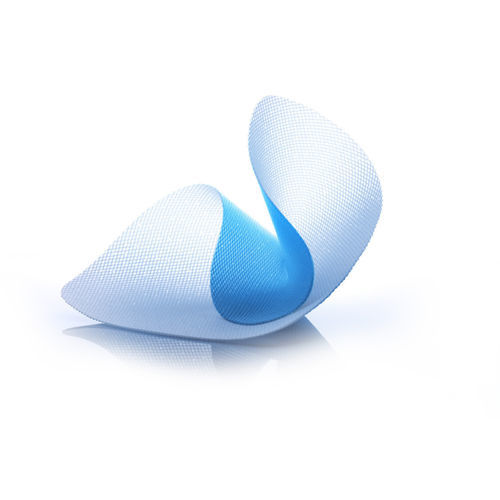

Ventral hernia prosthesis Intra-Swing®

Overview
Intra-Swing® composite, a complete solution for ventral hernia repair. Class IIb medical device.

Intraperitoneal Laparoscopic surgery
Parietal side

• Light tridimensional polyester (PET) mesh
• Open pores concept : Quick cellular colonization and durable fixing.
• High mechanical resistance : Reliable long-term repair.
• Thin design : Easy handling and trocar insertion.
• Possibility to use standard fixation device. Can be trimmed.
• Central marking : IS180 marking on the internal side allows an easy positioning facing the defect.
• Poids : 105 g/m2
• Porosity* : 55%

Visceral side

• Macro-perforated polyurethane (PUR) coating
• Exclusive PUR technology : Reduced risk of adhesions.
• Permanent non-adherent barrier offering a durable visceral protection
• Ø 1 mm macro-perforation : Ease the fluid drainage.
• Traction threads in monofilament polypropylene USP#1. Pre-positioning support of the prosthesis in the defect axis.
• Poids : 80 g/m2
• Porosity* : 1.4%

* According to S94-801

Intraperitoneal Open surgery
Parietal side

• Light tri-dimensional polyester (PET) mesh and fixation support lining, for open surgery.
• Open skirt : Bi-dimensional polyester (PET) mesh impregnated with polyurethane (PUR)
• Memory shape lining : Makes the positioning and fixation of the prosthesis easier. Ensures an easy deployment and support.

Visceral side

• Adhesion free macroperforated polyurethane coating.
• Adapted prosthesis designs : Possibility to use mechanical fixation devices. No lateral dissection.

References - Available sizes
IS 180 series:
IS180 1000 R | Ø 10 cm
IS180 1200 R | Ø 12 cm
IS180 1600 R | Ø 16 cm
IS180 1015 S | 10 x 15 cm
IS180 1520 S | 15 x 20 cm
IS180 2030 S | 20 x 30 cm
IS180 2535 S | 25 x 35 cm

Ventro-S variants:
IS180 1200 VO | Ø 12 cm
IS180 1015 VO | 10 x 15 cm
IS180 1520 VO | 15 x 20 cm
IS180 2030 VO | 20 x 30 cm
IS180 2535 VO | 25 x 35 cm

Caractéristiques / spécifications techniques

• Product family: Intra-Swing® IS180 (Ventro-S variant)
• Indication: Ventral hernia repair (intraperitoneal laparoscopic and open surgery)
• Parietal mesh material: Polyester (PET) — tridimensional for laparoscopic; bi-dimensional impregnated with PUR for open skirt
• Visceral coating: Macro-perforated polyurethane (PUR) — permanent non-adherent barrier
• Macro-perforation: Ø 1 mm (facilitates fluid drainage)
• Traction threads: Monofilament polypropylene USP #1 for pre-positioning
• Parietal side weight (laparoscopic): 105 g/m2
• Visceral side weight: 80 g/m2
• Parietal porosity*: 55%
• Visceral porosity*: 1.4%
• Design features: Thin design for trocar insertion; memory-shape lining for easier positioning (open surgery); central IS180 marking for positioning; can be trimmed; compatible with standard/mechanical fixation devices
• Mechanical performance: High mechanical resistance for durable repair
• Clinical/design note: Open pores concept for quick cellular colonization and durable fixing
• Regulatory: Class IIb medical device
• Additional note: Mean values given as an indication
