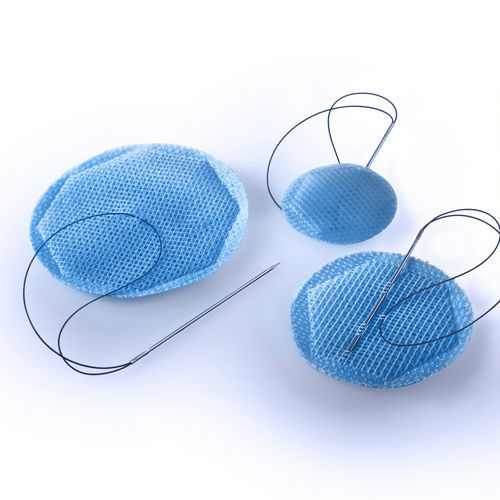

Umbilical hernia prosthesis Intra-Swing® UMBI-LINK

Overview
For laparoscopic or open approach. Intra-Swing® UMBI-LINK devices are intended for abdominal wall reinforcement in the treatment of umbilical hernias.

Design and Materials
PARIETAL SIDE

• Bi-dimensional knitted Polyester (PET) mesh impregnated with polyurethane (PUR) (113 g/m²) allowing suture fixation via open approach.

VISCERAL SIDE

• Tri-dimensional “honeycomb” knitted Polyester (PET) mesh coated with adhesion-free polyurethane (PUR) (185 g/m²).

Mean values given as an indication

References

• IS180 0451 UC — Ø 4.5 cm
• IS180 0651 UC — Ø 6.5 cm
• IS180 0851 UC — Ø 8.5 cm

Regulatory
Class IIb medical device.

Documentation
Intra-Swing® UMBI-LINK — Documentation reference: UMBI-LINK - V2 - 09/2023

Characteristics / technical specifications

• Indication: abdominal wall reinforcement for the treatment of umbilical hernias.
• Approach: suitable for laparoscopic or open approach.
• Parietal side material: bi-dimensional knitted Polyester (PET) impregnated with polyurethane (PUR), 113 g/m²; enables suture fixation for open approach.
• Visceral side material: tri-dimensional “honeycomb” knitted Polyester (PET) coated with adhesion-free polyurethane (PUR), 185 g/m².
• Available references / sizes: IS180 0451 UC (Ø 4.5 cm); IS180 0651 UC (Ø 6.5 cm); IS180 0851 UC (Ø 8.5 cm).
• Device classification: Class IIb medical device.
• Notes: Mean values given as an indication.
