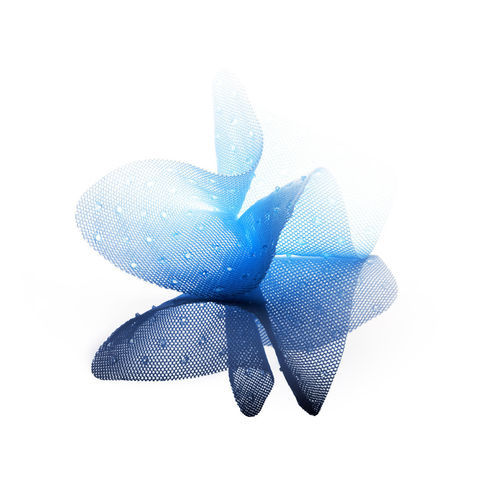

Ventral hernia prosthesis Swing-Contact®

inguinalabdominal

Overview
Tri-dimensional self-fixative
Swing-Contact® devices are intended for abdominal wall reinforcement in the treatment of ventral and inguinal hernias via open or laparoscopic surgery.

Variants

• CO3+: For laparoscopic or open surgery
• CO3A: Preferably for laparoscopic totally extraperitoneal approach (TEP)

Features

• Self-fixative tri-dimensional "honeycomb" knitted polyester (PET) prosthesis impregnated with polyurethane (PUR) and provided with atraumatic grips on both sides
• Does not require additional fixation
• Easy repositioning during surgery
• Porous structure to promote tissue ingrowth and colonization
• Shape memory, elasticity and multidirectional mechanical properties for laparoscopic or open use

References and available sizes
Onlay Lichtenstein (CO3+)

• CO3+ 0812 L — 8 x 12 cm
• CO3+ 0813 A — 8 x 13 cm
• CO3+ 0813 L — 8 x 13 cm
• CO3+ 0913 F — 9 x 13 cm
• CO3+ 1015 S — 10 x 15 cm

Lap TAPP/TEP (CO3+)

• CO3+ 0913 MA — 9 x 13 cm
• CO3+ 1114 MA — 11 x 14 cm
• CO3+ 1215 MA — 12 x 15 cm
• CO3+ 1216 MA — 12 x 16 cm
• CO3+ 0913 ER — 9 x 13 cm
• CO3+ 1114 ER — 11 x 14 cm
• CO3+ 1215 ER — 12 x 15 cm
• CO3+ 1013 MB — 10 x 13 cm
• CO3+ 1115 MB — 11 x 15 cm
• CO3+ 1216 MB — 12 x 16 cm
• CO3+ 1515 S — 15 x 15 cm

Ventral / Eventration (CO3+)

• CO3+ 1520 S — 15 x 20 cm
• CO3+ 1730 S — 17 x 30 cm

Lap TAPP/TEP (CO3A)

• CO3A 0913 D+ — 9 x 13 cm
• CO3A 1115 D+ — 11 x 15 cm
• CO3A 1216 D+ — 12 x 16 cm
• CO3A 0913 G+ — 9 x 13 cm
• CO3A 1115 G+ — 11 x 15 cm
• CO3A 1216 G+ — 12 x 16 cm

Technical specifications

• Material: Tri-dimensional knitted polyester (PET) prosthesis impregnated with polyurethane (PUR)
• Design: Self-fixative "honeycomb" structure with atraumatic grips on both sides
• Intended use: Abdominal wall reinforcement for ventral or inguinal hernias — open or laparoscopic surgery
• Weight: 126 g/m2
• Pore size: 1.48 x 1.32 mm
• Porosity*: 91% (A) — 61% (C)
• Thickness: 1.09 mm
• Tensile resistance: 147/166 N
• Average elongation: 41/76%
• Functional properties: Shape memory, easy repositioning during surgery, elasticity and multidirectional mechanical properties

Notes
Mean values given as an indication. *According to NF S94-801.
