Ankle and foot orthosis ROM-R

extensionflexionarticulated

Product description

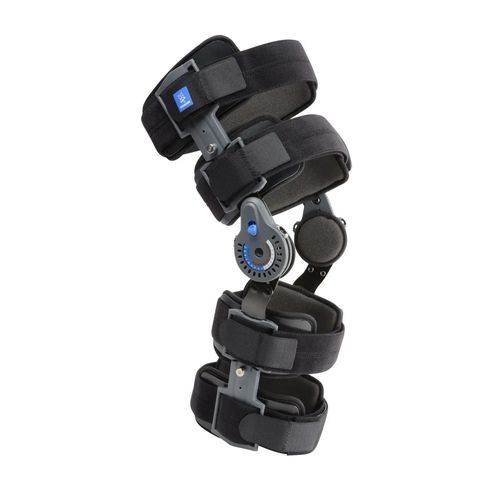

ROM-R knee splint provides adjustable immobilisation and stabilisation of the knee joint for post-operative care and functional rehabilitation. The device features a tool-less ROM system and extendable rigid side stays to control flexion and extension during recovery. Padding and quick-release buckles ensure rapid application and patient comfort. Bilateral model, universal size.

Key features

• Adjustable immobilisation and stabilisation for the knee.
• Rigid, tool-less, adaptable side stays (extendable).
• Tool-less ROM (range of motion) system with incremental settings.
• Inner and codylian foam padding for comfort.
• Quick-release buckles for easy donning and removal.
• Bilateral model, universal size.

Patient profile

• Active lifestyle
• Adult
• Post-surgery

Indications

• Immobilisation of the knee during the post-operative and/or functional rehabilitation period (including ligament, patellar tendon, joint cartilage and meniscus injuries).
• Immobilisation following knee injury.
• Conservative treatment of knee ligament injuries and/or ruptures.
• Knee instability.
• Immobilisation for fixed or stable fractures of the tibial plateau, condyles, proximal tibia or distal femur.

Contraindications

• Unstable or surgical fractures.
• Fractures outside the product’s zone (proximal femur fracture, distal tibia or fibula fracture).
• Known allergy to any of the components.
• Major venous thromboembolic history without thromboprophylaxis.

Materials

• Aluminium
• Polypropylene
• Polyamide
• Polyoxymethylene
• Ethylene-vinyl acetate (EVA)
• Polyester

Legal & Certification

• Medical device Class I.
• CE marked in accordance with European Regulation 2017/745 on medical devices (internal CE marking file noted).
• Instructions for use: online version is current; consult the instructions for use provided with the product.

How it works

• Rigid, adaptable side stays provide immobilisation and stabilization; side stays extend from 48 to 66 cm (tool-less adjustment).
• Tool-less ROM system allowing total immobilisation and controlled flexion/extension settings.

Technical specifications

• Side stays length (adjustable): extend from 48 cm to 66 cm.
• ROM system settings: total immobilisation available and incremental positions.
• Flexion range: adjustable up to 120° in 15° increments.
• Extension range: adjustable up to 105° in 15° increments.
• Adjustment increments: 15° steps for ROM control.
• Donning: inner and codylian foam padding; quick-release buckles for fast application/removal.
• Model: bilateral.
• Size: universal.
• Medical class: Class I (CE marked).
