Knee splint Rebel®

XSSL

Overview

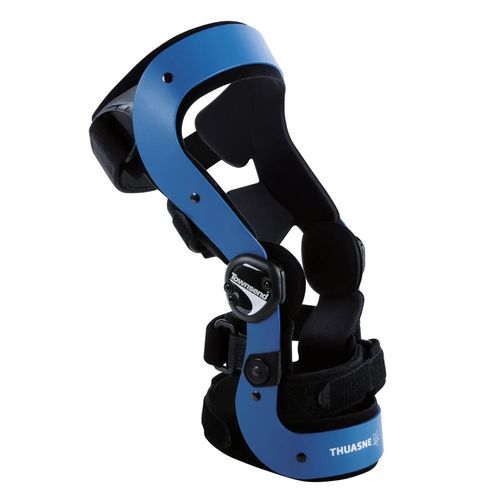

The Rebel® hinged rigid ligament knee brace provides stabilisation and controlled knee motion for patients with ligament injury, instability or post‑operative support needs. The rigid metallic frame together with TM5+ physiological hinges reproduce natural knee kinematics while maintaining joint control. Available in two heights (33 cm or 36 cm) and optional C/S (Compression/Suspension) configuration.

Detailed description
The brace is indicated for conservative treatment and rehabilitation of cruciate and/or lateral ligament injuries, post‑operative immobilisation and post‑traumatic management. Flexion control is adjustable from 0° to 110° and extension control from 0° to 30°. An optional flexion stop is available separately. The device is offered with a tibial bolster shaped to improve hold and a suspension strap to reduce rotation and slippage.

Key features

• Rigid metallic frame combined with TM5+ physiological hinges for controlled stabilisation
• Adjustable motion control: flexion 0°–110°; extension 0°–30°
• Choice of brace height: 33 cm or 36 cm
• Anterior and lateral paddings for user comfort during wear
• Synergistic tibia bolster and suspension strap to minimise rotation and maintain position
• Optional packages: C/S (Compression/Suspension); optional flexion stop (sold separately)

Patient profile

• Active athlete
• Active lifestyle
• Adult patient
• Recovery and rehabilitation focused

Indications
Conservative treatment of knee ligament lesions and/or ruptures (cruciate and/or lateral ligaments). Post‑operative immobilisation and/or rehabilitation. Post‑traumatic immobilisation. Joint instability or laxity, including in selected cases of knee osteoarthritis.

Contraindications
Do not use if diagnosis is unconfirmed. Do not use in case of known allergy to any component. Do not apply directly on broken skin or open wounds without adequate dressing. History of severe venous or lymphatic disorders. Do not use in cases of major venous thromboembolic history without appropriate thromboprophylaxis.

Sizes

• Size XS — Thigh circumference (15 cm above knee): 31–39 cm — Knee width: 7.5–9 cm — Calf circumference (15 cm below knee): 28–32 cm
• Size S — Thigh: 39–47 cm — Knee width: 9–10 cm — Calf: 31–35 cm
• Size M — Thigh: 47–53 cm — Knee width: 10–11.5 cm — Calf: 34–38 cm
• Size L — Thigh: 53–60 cm — Knee width: 11.5–12.5 cm — Calf: 37–40 cm
• Size XL — Thigh: 60–64 cm — Knee width: 12.5–14 cm — Calf: 38–43 cm
• Size XXL — Thigh: 64–71 cm — Knee width: 14–15.5 cm — Calf: 43–48 cm

Notes
Flexion stop available as an optional accessory. Brace height selectable between 33 cm and 36 cm. Option available with Compression/Suspension (C/S) package for enhanced retention.

Technical specifications

• Motion control: flexion 0°–110°; extension 0°–30°
• Adjustable brace height: 33 cm or 36 cm
• Hinges: TM5+ physiological hinges reproducing natural knee movement
• Frame: rigid metallic frame providing stabilisation
• Comfort: anterior and lateral paddings; tibia bolster and suspension strap to reduce rotation
• Optional: C/S package; flexion stop (sold separately)

Materials

• Textile components: elastane, polyamide, ethylene vinyl acetate (EVA), silicone, polymethyl methacrylate, polyethylene
• Rigid components: aluminium, stainless steel, polyoxymethylene (POM), vinyl, polypropylene, polyamide, epoxy resin, brass

Regulatory information
Medical device: Class I. CE marked according to European Regulation 2017/745 on medical devices. Read the instructions, indications and contraindications before use and consult a healthcare professional if in doubt.
