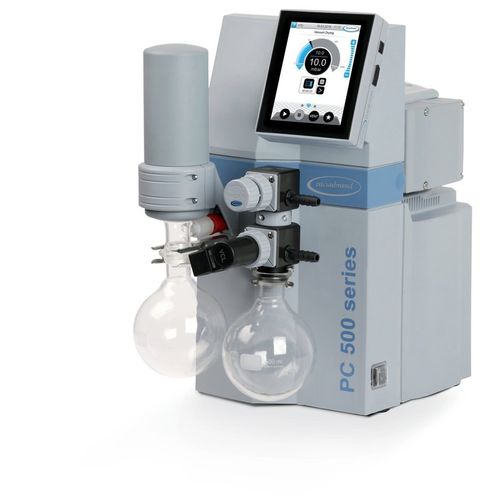

Rotary evaporator vacuum system PC 511 select

laboratorydiaphragmoil-free

Overview

• VACUU·SELECT vacuum controller with graphical user interface and predefined application workflows
• Predefined processes for common laboratory tasks to save time and ensure reproducibility
• Drag‑and‑drop application editor to create custom process sequences
• MZ 2C NT two‑stage chemistry diaphragm pump — oil‑free with high chemical and condensate compatibility
• Simultaneous operation of two independent vacuum applications via two inlet ports (one with manual flow control)

Product description
The PC 511 select is a compact, cost‑efficient pump system designed to run two independent vacuum applications in parallel with a single pump. The unit uses the MZ 2C NT two‑stage chemistry diaphragm pump as pumping element. The integrated VACUU·SELECT controller provides an intuitive, application‑based GUI with predefined vacuum routines for routine laboratory tasks and an editor for custom sequences. For solvent evaporation the electronic control port detects boiling pressure and switches to two‑point control to stabilise pressure during bumping. A second vacuum port with manual flow regulation allows a concurrent, independent process on the same pump. The glass inlet separator with protective coating retains particles and liquid droplets to protect the pump. The exhaust vapor condenser enables high solvent recovery when connected to chilled water or a recirculating chiller, supporting solvent recycling and environmental protection.

Technical data and graphs (excerpt)
Max. pumping speed 50 Hz: 2 m3/h
Max. pumping speed 60 Hz: 1.4 cfm
Ultimate vacuum: 7 mbar / 5 torr
Ultimate vacuum with gas ballast: 12 mbar / 9 torr
Number of heads: 2
Number of stages: 2
Vacuum controller: VACUU·SELECT
Lower ambient temperature (operation): 10 °C
Upper ambient temperature (operation): 40 °C
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: 2 x hose nozzle DN 8-10 mm
Outlet connection: Hose nozzle DN 8-10 mm
Coolant connection: 2 x hose nozzle DN 6-8 mm
Rated motor power: 0.18 kW
Rated motor speed at 50/60 Hz: 1500/1800 min-1
Protection class IEC 60529: IP 20
Dimension L x W x H: 435 x 272 x 457 mm
Weight: 19.2 kg
Noise (sound pressure level) at 50 Hz: 45 dBA
ATEX conformity: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
NRTL certification: No
Items supplied: Pumping unit completely mounted, ready for use, with manual

Characteristics / technical specifications

• Model: PC 511 select
• Brand: VACUUBRAND
• Controller: VACUU·SELECT (graphical UI, predefined applications, application editor)
• Pump type: MZ 2C NT two‑stage chemistry diaphragm pump (oil‑free)
• Pumping speed (50 Hz): 2 m3/h — (60 Hz: 1.4 cfm)
• Ultimate vacuum (no gas ballast): 7 mbar (5 torr); with gas ballast: 12 mbar (9 torr)
• Number of heads / stages: 2 / 2
• Rated motor power: 0.18 kW; Rated speed: 1500 / 1800 min‑1 (50/60 Hz)
• Connections: inlet 2 x DN 8-10 mm, outlet DN 8-10 mm, coolant 2 x DN 6-8 mm
• Max. back pressure (abs.): 1.1 bar
• Operating ambient temperature: 10 °C to 40 °C; Storage: -10 °C to 60 °C
• Protection class: IP 20; Noise: 45 dBA (50 Hz)
• Interfaces: Ethernet (RJ45) Modbus TCP, USB (Type A) for data transfer/software update, RS‑232 via adapter
• ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• Items supplied: complete pumping unit, ready for use, with manual
