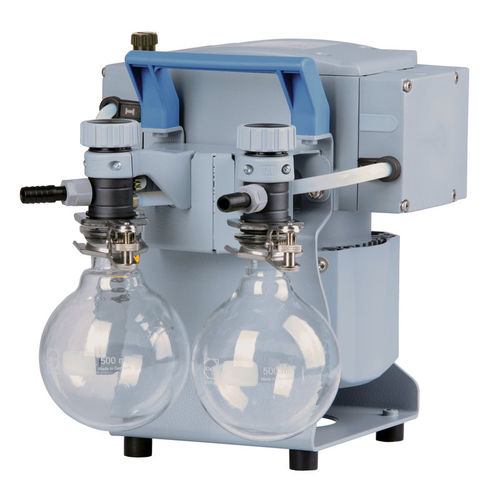

Filtration vacuum pump MZ 2C NT +2AK

for rotary evaporatorslaboratorymulti-stage

Overview

• Outstanding chemical resistance and high vapor tolerance
• High pumping performance even near ultimate vacuum
• Optimized operation with gas ballast for condensate purge
• Very low noise and vibration
• Inlet (AK) and outlet separators to collect condensates and prevent backflow

Applications
This chemical vacuum system is intended for evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories where condensation of solvent vapors at the outlet is not required. Typical uses include vacuum concentrators, gel dryers, rotary evaporation support and filtration. The inlet separator (AK), made of glass with protective coating, retains particles and liquid droplets. The outlet separator collects condensate, prevents backflow to the pump and supports quiet operation.

Key specifications

• Model: MZ 2C NT +2AK
• Brand: VACUUBRAND
• Max. pumping speed (50 Hz): 2 m³/h
• Max. pumping speed (60 Hz): 1.4 cfm
• Ultimate vacuum (without gas ballast): 7 mbar / 5 torr
• Ultimate vacuum with gas ballast: 12 mbar / 9 torr
• Number of heads / stages: 2 heads, 2 stages
• Rated motor power: 0.18 kW
• Rated motor speed (50/60 Hz): 1500 / 1800 min⁻¹
• Inlet / outlet connection: Hose nozzle DN 8‑10 mm
• Max. back pressure (abs.): 1.1 bar
• Protection class (IEC 60529): IP 40
• Dimensions (L × W × H): 319 × 243 × 309 mm
• Weight: 13.6 kg
• Noise (sound pressure level) at 50 Hz: 45 dBA
• ATEX conformity: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• NRTL certification: Yes
• Rated mains voltage: 230 V
• Mains frequency: 50–60 Hz
• Items supplied: Pumping unit completely mounted, ready for use, with manual
