Rotary evaporator vacuum pump PC 3002 VARIO select EK Peltronic
laboratorydiaphragmmulti-stage

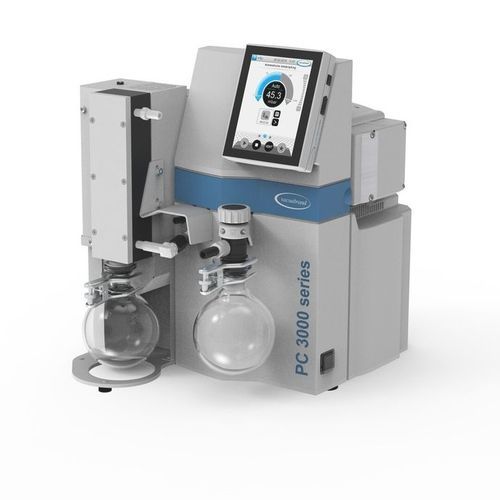

Rotary evaporator vacuum pump - PC 3002 VARIO select EK Peltronic - Vacuubrand - laboratory / diaphragm / multi-stage
Rotary evaporator vacuum pump - PC 3002 VARIO select EK Peltronic - Vacuubrand - laboratory / diaphragm / multi-stage
Add to favorites
Compare this product
Go to the Vacuubrand website for more information

Characteristics

Applications
laboratory, for rotary evaporators
Technology
diaphragm
Options
multi-stage
Flow

1.65 m³/h, 2.8 m³/h
(58.27 ft³/h, 98.88 ft³/h)

Power

Min.: 0.53 kW
(0.72 hp)

Max.: 0.53 kW
(0.72 hp)

Pressure

Min.: 0.007 bar
(0.1015 psi)

Max.: 0.012 bar
(0.174 psi)

Weight

22 kg
(48.5 lb)

Length

40.2 cm
(15.8 in)

Width

36.1 cm
(14.2 in)

Height

45.7 cm
(18 in)

Description

Overview
  • VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies laboratory workflows
  • Automatic boiling point detection and vacuum adjustment for short process times
  • Compact and efficient; good ultimate vacuum even with open gas ballast valve
  • Very quiet, low-vibration operation and extended service intervals
  • Efficient solvent recovery without external coolant using Peltronic exhaust vapor condenser


Description
VARIO® pumps and pumping units provide precise vacuum control by adapting the diaphragm pump motor speed. They offer fully automatic evaporation control at the push of a button. The base pump is the MZ 2C NT VARIO two-stage chemistry diaphragm pump, suitable for medium vacuum requirements for most solvents. The PC 3002 VARIO pumping unit is designed for evaporation of large solvent volumes. The inlet separator collects particles and liquid droplets. The Peltronic emission condenser at the outlet enables near-100% solvent recovery without external coolant and supports environmentally responsible solvent recycling. On-demand motor speed control extends the service life of wear parts such as diaphragms.

Key product details
  • Model: PC 3002 VARIO select EK Peltronic
  • Article no.: 20733574
  • Items supplied: Pumping unit with Peltronic emission condenser, operating manual, without power cable
  • Delivery: On demand


Technical specifications
  • Max. pumping speed 50 Hz: 2.8 m3/h
  • Max. pumping speed 60 Hz: 1.65 cfm
  • Ultimate vacuum: 7 mbar / 5 torr
  • Ultimate vacuum with gas ballast: 12 mbar / 9 torr
  • Heads / stages: 2 / 2
  • Vacuum controller: VACUU·SELECT
  • Rated motor power: 0.53 kW
  • Protection class: IP 20
  • Dimensions (L x W x H): 402 x 361 x 457 mm
  • Weight: 22 kg
  • Noise (50 Hz): 43 dBA
  • Interfaces: Ethernet (RJ45) Modbus TCP, USB Type A, RS-232 (adapter required)
  • Rated voltage range: 200-230 V, 50-60 Hz


Applications (examples)
  • Rotary evaporators
  • Ovens and drying systems
  • Vacuum concentrators and evaporators
