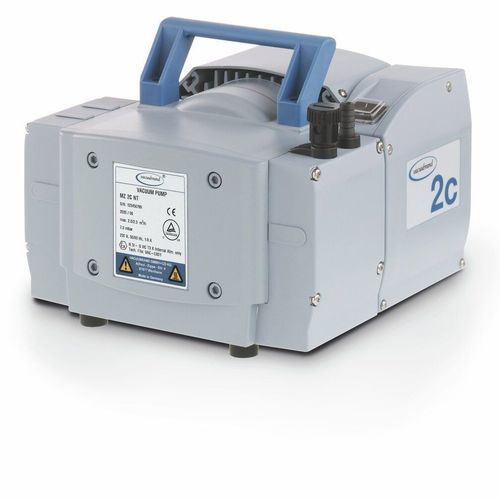

Laboratory vacuum pump MZ 2C NT +AK+EK Peltronic

for rotary evaporatorsdiaphragmmulti-stage

Overview

• Chemical-resistant construction with high condensate tolerance
• Stable performance at low vacuum levels
• Optimized ultimate vacuum even with gas ballast opened
• Low noise and reduced vibration for laboratory environments
• Efficient solvent recovery without external coolant via Peltronic exhaust condenser

Product description
This chemical vacuum system is engineered for evacuation, evaporation and pumping of gases and vapours in chemical, biological and pharmaceutical laboratories and light processes. Typical applications include rotary evaporators, vacuum concentrators and vacuum drying ovens. The inlet separator (AK), made of glass with a protective coating, retains particles and liquid droplets. The compact Peltronic exhaust vapor condenser (EK) at the outlet enables nearly 100% solvent recovery for efficient recycling and active environmental protection. Supplied items: pumping unit with Peltronic emission condenser and operating manual; product is supplied without mains cable.

Technical data
Max. pumping speed 50 Hz: 2 m3/h
Max. pumping speed 60 Hz: 1.4 cfm
Ultimate vacuum: 7 mbar / 5 torr
Ultimate vacuum with gas ballast: 12 mbar / 9 torr
Number of heads: 2
Number of stages: 2
Operating ambient temperature: 10 °C to 40 °C
Storage temperature: -10 °C to 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: Hose nozzle DN 8-10 mm
Outlet connection: PTFE tubing connection 10/8 mm
Rated motor power: 0.18 kW
Rated motor speed (50/60 Hz): 1500 / 1800 min-1
Protection class IEC 60529: IP40
Dimensions L x W x H: 360 x 326 x 392 mm
Weight: 18.2 kg
Noise (sound pressure level) at 50 Hz: 45 dBA
ATEX conformity: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
NRTL certification: No

Features / technical specifications

• Model: MZ 2C NT +AK+EK Peltronic (two-head, two-stage chemistry diaphragm pump unit)
• Included components: Peltronic exhaust vapor condenser (EK), inlet separator (AK), operating manual; supplied without mains cable
• Pumping speed (50 Hz): 2 m3/h
• Ultimate vacuum (without gas ballast): 7 mbar (5 torr)
• Ultimate vacuum (with gas ballast): 12 mbar (9 torr)
• Connections: inlet hose nozzle DN 8-10 mm; outlet PTFE tubing connection 10/8 mm
• Motor: 0.18 kW, 1500 / 1800 min-1 (50/60 Hz)
• Operating temperature range: 10 °C to 40 °C
• Storage temperature range: -10 °C to 60 °C
• Max. back pressure (abs.): 1.1 bar
• Dimensions (L x W x H): 360 x 326 x 392 mm
• Weight: 18.2 kg
• Sound pressure level (50 Hz): 45 dBA
• ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
