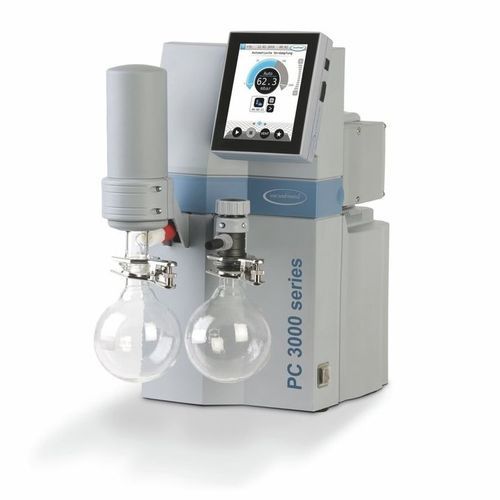

Laboratory vacuum pump PC 3002 VARIO select

diaphragmmulti-stage

Overview

• VACUU·SELECT vacuum controller with graphical UI and predefined applications for routine laboratory workflows
• Automatic boiling point detection and automatic vacuum adjustment for faster solvent evaporation processes
• Compact two‑stage VARIO® diaphragm pump configuration with good ultimate vacuum even with gas ballast open
• Low noise, low vibration and extended maintenance intervals through VARIO control
• Efficient solvent recovery via exhaust vapor condenser for economical recycling and environmental protection

Description
The PC 3002 VARIO select pumping unit precisely controls vacuum by varying pump speed to match process demand. The pumping core is a two‑stage MZ 2C VARIO diaphragm pump suitable for most common solvents. The integrated VACUU·SELECT controller provides an application‑based graphical interface with predefined processes, manual set‑point control and a drag‑and‑drop app editor for custom routines. During solvent evaporation the controller detects boiling point and adjusts vacuum automatically to shorten process times. VARIO control reduces pump speed to the minimum required, lowering noise and vibration and extending service intervals. A glass inlet separator with protective coating prevents particles and droplets from entering the pump. An exhaust vapor condenser allows near‑complete solvent recovery to reduce operating costs and emissions. The unit is ready for laboratory integration with Ethernet (Modbus TCP), USB and optional RS‑232 connectivity.

Technical data and graphs (selected values)
Model: PC 3002 VARIO select
Pump core: MZ 2C VARIO (two‑stage chemistry diaphragm pump)
Pumping speed (50 Hz): 2.8 m3/h
Pumping speed (60 Hz): 1.65 cfm
Ultimate vacuum (no gas ballast): 7 mbar / 5 torr
Ultimate vacuum (with gas ballast): 12 mbar / 9 torr
Number of heads/stages: 2 / 2
Rated motor power: 0.53 kW
Max. back pressure (abs.): 1.1 bar
Inlet / outlet connection: Hose nozzle DN 8–10 mm
Coolant connection: 2 × hose nozzle DN 6–8 mm
Dimensions (L×W×H): 419 × 243 × 457 mm
Weight: 17.9 kg
Noise (50 Hz): 43 dBA
Protection class: IP20
ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
Rated mains voltage: 200–230 V, 50–60 Hz
Interfaces: Ethernet (RJ45) Modbus TCP; USB Type A (data/updates); RS‑232 (adapter required)

Features / technical specifications

• Model: PC 3002 VARIO select
• Pump core: MZ 2C VARIO (two‑stage chemistry diaphragm pump)
• Controller: VACUU·SELECT (graphical UI, predefined apps, boiling point detection, drag‑and‑drop editor)
• Pumping speed: 2.8 m3/h (50 Hz) / 1.65 cfm (60 Hz)
• Ultimate vacuum: 7 mbar (5 torr); with gas ballast: 12 mbar (9 torr)
• Connections: inlet/outlet DN 8–10 mm; coolant 2× DN 6–8 mm
• Rated motor power: 0.53 kW; protection class IP20
• Dimensions / weight: 419 × 243 × 457 mm; 17.9 kg
• Noise: 43 dBA (50 Hz)
• Interfaces: Ethernet (Modbus TCP), USB Type A, RS‑232 (adapter)
• Supplied: fully mounted pumping unit with manual; glass inlet separator (protective coating) and exhaust vapor condenser
