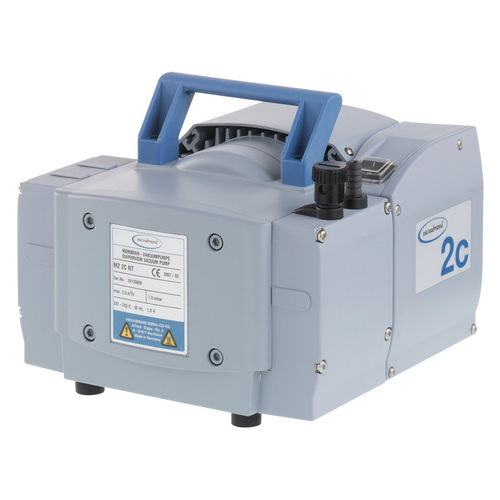

Laboratory vacuum pump MZ 2C NTdiaphragmoil-freemulti-stage
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory
- Technology
- diaphragm
- Options
- oil-free, multi-stage
- Flow
2 m³/h
(70.63 ft³/h)- Power
0.18 kW
(0.24 hp)- Pressure
7 mbar, 12 mbar
(0.1015 psi, 0.174 psi)- Inlet fitting size
Max.: 10 mm
(0.4 in)Min.: 8 mm
(0.3 in)- Outlet fitting size
Max.: 10 mm
(0.4 in)Min.: 8 mm
(0.3 in)- Weight
11.1 kg
(24.5 lb)- Length
243 mm
(9.6 in)- Width
243 mm
(9.6 in)- Height
198 mm
(7.8 in)
Description
Overview
Product description
Chemistry-design diaphragm pumps provide continuous, oil-free evacuation of corrosive gases and vapors. The two-stage construction combines high pumping speed with a low ultimate vacuum. All wetted parts are made of chemically resistant fluoroplastics and proven PTFE sandwich diaphragms increase reliability and service life. The MZ 2C NT is equipped with a gas ballast valve to purge condensate and improve handling of condensable vapors. The NT series features improved performance data and enhanced vapor tolerance, making this model suitable for common laboratory and process chemistry applications.
- Chemically resistant fluoroplastic wetted parts and high vapor tolerance
- High pumping speed near ultimate vacuum
- Improved ultimate vacuum with gas ballast open for condensate purge
- Low noise and low vibration
- Long PTFE diaphragm life; maintenance-free drive
Product description
Chemistry-design diaphragm pumps provide continuous, oil-free evacuation of corrosive gases and vapors. The two-stage construction combines high pumping speed with a low ultimate vacuum. All wetted parts are made of chemically resistant fluoroplastics and proven PTFE sandwich diaphragms increase reliability and service life. The MZ 2C NT is equipped with a gas ballast valve to purge condensate and improve handling of condensable vapors. The NT series features improved performance data and enhanced vapor tolerance, making this model suitable for common laboratory and process chemistry applications.
