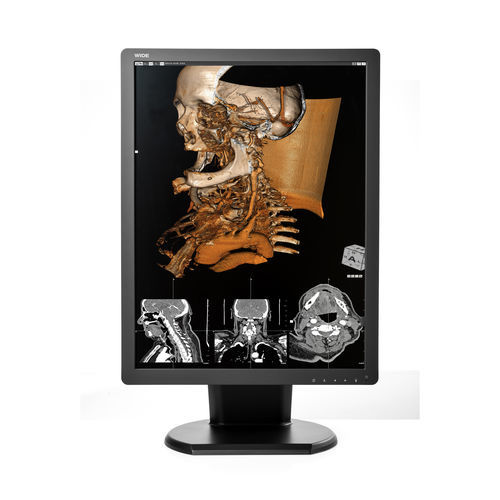

Diagnostic display CX30N

medical imaging2048 x 153621.3in

The 21.3″ 3mp Diagnostic Color Display (CX30N) is a high-resolution medical imaging monitor designed for diagnostic applications. It features a 3MP 21.3-inch TFT AMLCD IPS color panel, providing precise and vibrant image quality essential for clinical environments. The monitor is equipped with advanced technologies such as a 14-bit Look-Up Table, Embedded IQ Sensor®, and PrivateLite® for enhanced performance and usability. Connectivity options include DisplayPort and DVI, ensuring compatibility with various medical imaging systems.

Main Features

• 3MP 21.3″ diagnostic color display
• 14-bit Look-Up Table for accurate color reproduction
• Embedded IQ Sensor® for automatic calibration
• PrivateLite® LED light for improved visibility
• DisplayPort & DVI digital video inputs

Technical Specifications

• Model: CX30N
• LCD Panel: TFT AMLCD IPS Color
• Native Resolution: 2048 x 1536 @60Hz
• Pixel Pitch: 0.2115mm X 0.2115mm
• Active Display Area: 433.15(H)mm x 324.86(V)mm (17.0”X12.9”)
• Active Screen Size (Diagonal): 541.436mm (21.3 “)
• Viewing Angle (Typ): 178º,178º at 10:1 Contrast Ratio
• Brightness Max. (Typ): 1000cd/m²
• Brightness Calibrated (Typ): 450cd/m²
• Contrast Ratio (Typ): 1500:1
• Bit Rate for Look-Up Table: 14-bit
• Digital Video Input: DVI-I, DisplayPort
• Display Communication: DDC2B (VESA Standard Compliance)
• Universal Serial Bus (USB): 1 up and 3 down-streams
• Power Supply: AC Input: 100-240Volt±10% / 60Hz/50Hz±3Hz | DC Output: +24V
• Built-in Sensors: IQ Sensor III®, SBC, DAC
• Luminance Uniformity Control (LUC): Yes
• Display Adjustments: Menu, Enter, Down, Up, Lamp, Power
• OSD Languages: English, German, French, Spanish, Italian, Russian, Japanese, Chinese, Korean
• LED Light (PrivateLite®): Yes
• Power Consumption: Max: 75W, Power Save: 2W
• Tilt/Swivel/Height Adjustments: -3º,+15º/±20º/110mm
• Portrait/Landscape Rotation: 90º (Counter clockwise)
• Mounting: VESA Standard (100mmx100mm)
• Weight: 10.1Kg(22.27lb) with Stand
• Dimension: 366.0mm(W)x518.8mm(H)x248.8mm(D)
• Operational Temperature: 0ºC to 40ºC (32ºF to 104ºF)
• Operational Humidity: 8% to 80%
• Storage Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
• Certifications and Standards: ANSI/AAMI ES 60601-1, EN60601-1, IEC60601-1, CE, VCCI, KC, C-Tick, FCC
• Options: Protective Glass
