Diagnostic display MX20N

medical imaging21.3inLCD

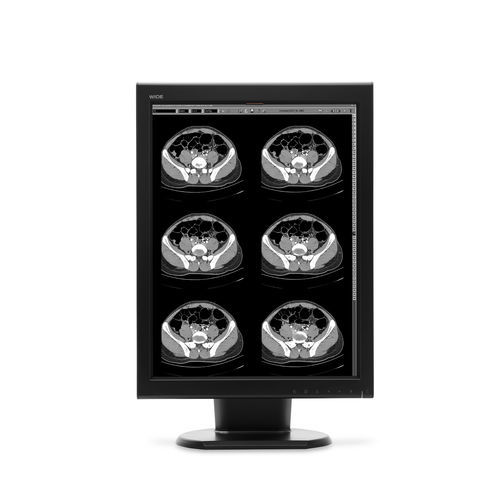

The WIDE 21.3″ 2MP Diagnostic Mono Display (MX20N) is a high-performance medical imaging monitor designed for diagnostic applications. It features a 21.3-inch TFT AMLCD IPS grayscale panel with a native resolution of 1200(H) x 1600(V), providing sharp and clear images for precise diagnostics. The display incorporates advanced technologies such as a 14-bit Look-Up Table, Embedded IQ Sensor®, and PrivateLite® for enhanced image quality and user experience. Connectivity options include DisplayPort and DVI, ensuring compatibility with various medical imaging systems.

Main Features

• 2MP 21.3″ Diagnostic Mono Display
• 14-bit Look-Up Table
• Embedded IQ Sensor®
• PrivateLite®
• DisplayPort & DVI

Technical Specifications

• Model: MX20N
• LCD Panel: TFT AMLCD IPS Grayscale
• Native Resolution: 1200(H) x 1600(V)
• Pixel Pitch: 0.270mm x 0.270mm
• Active Display Area: 432.0mm x 324.0mm (17.0”x12.8”)
• Active Screen Size (Diagonal): 540.0mm (21.3”)
• Viewing Angle (Typ): 178º,178º at 10:1 Contrast Ratio
• Brightness Max. (Typ): 1900cd/m²
• Brightness Calibrated (Typ): 500cd/m²
• Contrast Ratio (Typ): 1800:1
• Bit Rate for Look-Up Table: 14-bit
• Digital Video Input: DVI-D, DisplayPort
• Display Communication: DDC2B (VESA Standard Compliance)
• Universal Serial Bus (USB): 1 up and 3 down-streams
• Power Supply: AC Input 100-240Volt±10%/60Hz/50Hz±3Hz | DC Output +24V
• Built-in Sensors: IQ Sensor III®, SBC¹, DAC²
• Luminance Uniformity Control (LUC): Yes
• Display Adjustments: Menu, Enter, Down, Up, Lamp, Power
• OSD Languages: English, German, French, Spanish, Italian, Russian, Japanese, Chinese, Korean
• LED Light (PrivateLite®): Yes
• Power Consumption: Max: 55W, Power Save: 2W
• Tilt/Swivel/Height Adjustments: -3º,+15º/±20º/110mm
• Portrait/Landscape Rotation: 90º (Counter clockwise)
• Mounting Hole: VESA Standard (100mmx100mm)
• Weight: 8.6Kg(18.90lb) with Stand
• Dimension: 366.0mm(W)x518.8mm(H)x248.8mm(D)
• Operational Temperature: 0ºC to 40ºC (32ºF to 104ºF)
• Operational Humidity: 8% to 80%
• Storage Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
• Certifications and Standards: CE
• Screen Protection: Protective Glass
• Options: –
