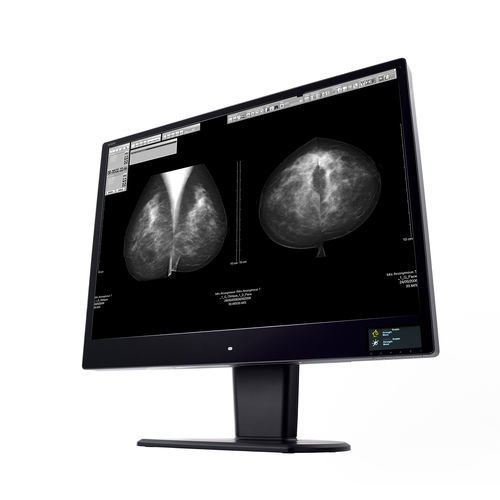

Diagnostic display CW120N

medical imaging31"LCD

The WIDE 31″ 12MP Diagnostic Color Display (CW120N) is a state-of-the-art multi-modality color monitor designed to enhance diagnostic accuracy and streamline workflows for radiologists and clinicians. This display offers unmatched visual clarity and performance, featuring a maximum brightness of 1200 cd/m² and a contrast ratio of 1500:1, ensuring crisp and vibrant visuals for precise readings across various imaging modalities. The implementation of a 14-bit lookup table further enhances color accuracy, supporting confident diagnoses.

Key Features

• Embedded IQ Sensor®
• Ambient Sensor
• Private Lite | Ambient Lite
• Self DICOM Calibration & Conformance
• Human Detector
• Separated UI Display (3.5″, 340×800)

Unmatched Visual Clarity and Performance
The CW120N provides high brightness and contrast, with advanced lookup table technology for superior color accuracy.

Multitasking Made Easy
This monitor can accommodate two images simultaneously on a single screen, eliminating the need for multiple monitors and resolving color deviation issues common with dual screens.

Enhanced Comfort and Eye Protection
Equipped with an ambient light sensor, the CW120N automatically adjusts screen brightness to reduce eye strain. A private light below the display offers optimal illumination for typing and reading without disrupting focus.

Precision Diagnosis with Advanced Calibration
Features such as self-calibration, conformance testing, and the innovative SBC sensor maintain consistent brightness and performance. The separate OSD feature allows full control of on-screen display menus without obstructing the image.

Energy Efficiency
Motion sensors detect user presence, switching to power-saving mode when not in use and resuming normal operation upon return, reducing energy consumption and extending the display’s lifespan.

Engineered for Reliability
The CW120N is built for reliability, accuracy, and convenience, making it a powerful tool for healthcare professionals seeking to optimize diagnostic workflows.

Technical Specifications

• Model: CW120N
• Panel: TFT AMLCD IPS Color
• Native Resolution: 4200(H) x 2800(V)
• Pixel Pitch: 0.1554mm x 0.1554mm
• Active Display Area: 652.68mm x 435.12mm (25.7”x17.1”)
• Active Screen Size: 784.0mm (31.0”)
• Viewing Angle (Typ): 178º,178º at 10:1 Contrast Ratio
• Brightness Max (Typ): 1200cd/m²
• Brightness Calibrated (Typ): 500cd/m²
• Contrast Ratio (Typ): 1500:1
• Bit Rate for Look-Up Table: 14-bit
• Digital Video Input: DisplayPort, (2x DP with single or dual input mode)
• Display Communication: DDC2B (VESA Standard Compliance)
• Universal Serial Bus (USB): 1 up and 2 down-streams
• Power Supply: AC Input 100-240Volt±10%/60Hz/50Hz±3Hz | DC Output +24V
• Built-in Sensors: IQ Sensor®, SBC¹, DAC², Human Sensor
• LUC³: Yes
• Display Adjustments: Menu, Enter, Down, Up, Lamp, Power
• OSD Languages: English
• LED Light (AmbientLite®): Yes
• LED Light (PrivateLite®): Yes
• Power Consumption: Max: 170W, Typical: 100W
• Tilt/Swivel/Height Adjustments: -3º,+15º/±20º/110mm
• Portrait/Landscape Rotation: –
• Mounting Hole: VESA Standard (100mmx100mm)
• Weight: 20.0Kg (44.09lb) with Stand
• Dimension: 689.0mm(W)x647.4mm(H)x237.0mm(D)
• Operational Temperature: 0ºC to 40ºC (32ºF to 104ºF)
• Operational Humidity: 8% to 80%
• Storage Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
• Certifications and Standards: ANSI/AAMI ES 60601-1, EN60601-1, IEC60601-1, CE, VCCI, KC, C-Tick, FCC
• Screen Protection: Protective Glass
• Options: –
