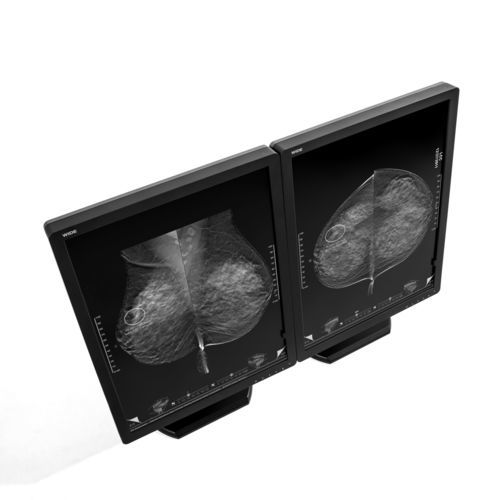

Diagnostic display MX50N
medical imagingmammography2048 x 1536

Diagnostic display - MX50N - Wide USA Corporation - medical imaging / mammography / 2048 x 1536
Diagnostic display - MX50N - Wide USA Corporation - medical imaging / mammography / 2048 x 1536
Add to favorites
Compare this product

Characteristics

Applications
medical imaging, diagnostic, mammography
Resolution
2048 x 1536
Display size
21.3in
Technology
LCD
Options
monochrome
Input
DisplayPort, DVI
Brightness (cd/m²)

1,200 cd

Power consumption

50 W

Viewing angle

178 °

Weight

10.7 kg
(23.6 lb)

Width

390.3 mm
(15.4 in)

Height

520.1 mm
(20.5 in)

Depth

248.8 mm
(9.8 in)

Description

The 21.3″ 5mp Mammo Tomo Mono Display (MX50N) is a high-resolution medical imaging monitor designed for mammography and tomosynthesis applications. It features a 5MP 21.3-inch grayscale TFT AMLCD IPS panel, providing exceptional image clarity and detail for diagnostic use. The display incorporates advanced technologies such as a 14-bit Look-Up Table, Embedded IQ Sensor®, and PrivateLite® for enhanced performance and calibration. Connectivity options include DisplayPort and DVI, ensuring compatibility with a wide range of medical imaging systems.

Key Features
  • 5MP 21.3″ grayscale display for mammography and tomosynthesis
  • 14-bit Look-Up Table for precise grayscale rendering
  • Embedded IQ Sensor® for automatic calibration
  • PrivateLite® LED light for improved visibility
  • DisplayPort & DVI digital video inputs

Technical Specifications
  • Model: MX50N
  • LCD Panel: TFT AMLCD IPS Grayscale
  • Native Resolution: 2048(H) x 2560(V)
  • Pixel Pitch: 0.165mm x 0.165mm
  • Active Display Area: 422.4mm x 337.92mm (16.6”x13.3”)
  • Active Screen Size (Diagonal): 540.9mm (21.3”)
  • Viewing Angle (Typ): 178º, 178º at 10:1 Contrast Ratio
  • Brightness Max. (Typ): 1200cd/m²
  • Brightness Calibrated (Typ): 500cd/m²
  • Contrast Ratio (Typ): 1200:1
  • Bit Rate for Look-Up Table: 14-bit
  • Digital Video Input: DVI-I, DisplayPort
  • Display Communication: DDC2B (VESA Standard Compliance)
  • Universal Serial Bus (USB): 1 up and 3 down-streams
  • Power Supply: AC Input: 100-240Volt±10% / 60Hz/50Hz±3Hz | DC Output: +24V
  • Built-in Sensors: IQ Sensor III®, SBC, DAC
  • Luminance Uniformity Control (LUC): Yes
  • Display Adjustments: Menu, Enter, Down, Up, Lamp, Power
  • OSD Languages: English, German, French, Spanish, Italian, Russian, Japanese, Chinese, Korean
  • LED Light (PrivateLite®): Yes
  • Power Consumption: Max: 50W, Power Save: 2W
  • Tilt/Swivel/Height Adjustments: -3º,+15º/±20º/110mm
  • Portrait/Landscape Rotation: 90º (Counter clockwise)
  • Mounting Hole: VESA Standard (100mmx100mm)
  • Weight: 10.7Kg(23.59lb) with Stand
  • Dimension: 390.3mm(W)x520.1mm(H)x248.8mm(D)
  • Operational Temperature: 0ºC to 40ºC (32ºF to 104ºF)
  • Operational Humidity: 8% to 80%
  • Storage Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
  • Certifications and Standards: ANSI/AAMI ES 60601-1, EN60601-1, IEC60601-1, CE, VCCI, KC, C-Tick, FCC
  • Options: Protective Glass
