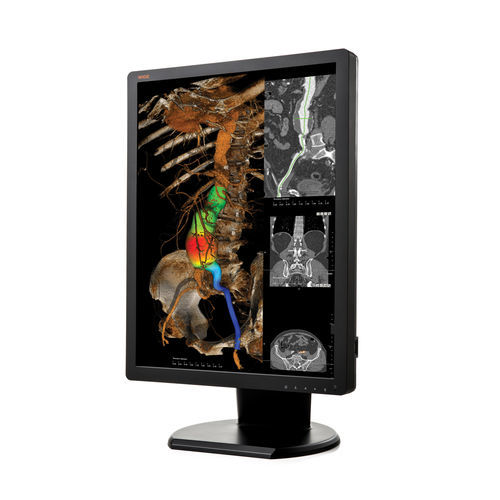

Diagnostic display CX20N

medical imaging21.3inLCD

The WIDE 21.3″ 2mp Diagnostic Color Display (CX20N) is a high-performance medical imaging monitor designed for diagnostic applications. It features a 21.3-inch TFT AMLCD IPS color panel with a native resolution of 1600 x 1200 at 60Hz, providing clear and accurate image reproduction for medical professionals. The display incorporates advanced technologies such as a 14-bit Look-Up Table, Embedded IQ Sensor®, and PrivateLite® for enhanced image quality and user experience.

Main Features

• 2MP 21.3″ diagnostic color display
• 14-bit Look-Up Table for precise color rendering
• Embedded IQ Sensor® for automatic calibration
• PrivateLite® LED light for improved visibility
• Supports DisplayPort & DVI digital video inputs

Technical Specifications

• Model: CX20N
• LCD Panel: TFT AMLCD IPS Color
• Native Resolution: 1600 x 1200 @ 60Hz
• Pixel Pitch: 0.270mm x 0.270mm
• Active Display Area: 432.0mm x 324.0mm (17.0”x12.8”)
• Active Screen Size (Diagonal): 540.0mm (21.3”)
• Viewing Angle (Typ): 178º,178º at 10:1 Contrast Ratio
• Brightness Max. (Typ): 1000cd/m²
• Brightness Calibrated (Typ): 450cd/m²
• Contrast Ratio (Typ): 1800:1
• Bit Rate for Look-Up Table: 14-bit
• Digital Video Input: DVI-I, DisplayPort
• Display Communication: DDC2B (VESA Standard Compliance)
• Universal Serial Bus (USB): 1 up and 3 down-streams
• Power Supply: AC Input: 100-240Volt±10% / 60Hz/50Hz±3Hz | DC Output: +24V
• Built-in Sensors: IQ Sensor III®, SBC, DAC
• Luminance Uniformity Control (LUC): Yes
• Display Adjustments: Menu, Enter, Down, Up, Lamp, Power
• OSD Languages: English, German, French, Spanish, Italian, Russian, Japanese, Chinese, Korean
• LED Light (PrivateLite®): Yes
• Power Consumption: Max: 60W, Power Save: 2W
• Tilt/Swivel/Height Adjustments: -3º,+15º/±20º/110mm
• Portrait/Landscape Rotation: 90º (Counter clockwise)
• Mounting: VESA Standard (100mmx100mm)
• Weight: 9.3Kg(20.50lb) with Stand
• Dimension: 366.0mm(W)x518.8mm(H)x248.8mm(D)
• Operational Temperature: 0ºC to 40ºC (32ºF to 104ºF)
• Operational Humidity: 8% to 80%
• Storage Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
• Certifications and Standards: ANSI/AAMI ES 60601-1, EN60601-1, IEC60601-1, CE, VCCI, KC, C-Tick, FCC
• Options: Protective Glass

Characteristics / Technical Specifications

• Model: CX20N
• Panel Type: TFT AMLCD IPS Color
• Resolution: 1600 x 1200 @ 60Hz
• Pixel Pitch: 0.270mm x 0.270mm
• Active Area: 432.0mm x 324.0mm
• Diagonal Size: 21.3”
• Viewing Angle: 178º
• Max Brightness: 1000cd/m²
• Calibrated Brightness: 450cd/m²
• Contrast Ratio: 1800:1
• Look-Up Table: 14-bit
• Inputs: DVI-I, DisplayPort
• USB: 1 up, 3 down
• Power: AC 100-240V, DC +24V
• Sensors: IQ Sensor III®, SBC, DAC
• LUC: Yes
• LED Light: Yes (PrivateLite®)
• Power Consumption: Max 60W, Power Save 2W
• Adjustments: Tilt, Swivel, Height, Rotation
• Mounting: VESA 100x100mm
• Weight: 9.3Kg with Stand
• Dimensions: 366.0mm x 518.8mm x 248.8mm
• Operating Temp: 0ºC to 40ºC
• Operating Humidity: 8% to 80%
• Storage Temp: -20ºC to 60ºC
• Certifications: ANSI/AAMI ES 60601-1, EN60601-1, IEC60601-1, CE, VCCI, KC, C-Tick, FCC
• Option: Protective Glass
