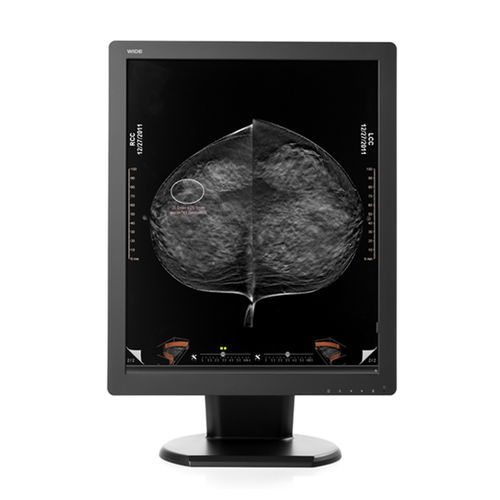

Diagnostic display CX50N

medical imagingmammography2048 x 1536

The 21.3″ 5mp Mammo Tomo Color Display (CX50N) is a high-resolution medical imaging monitor designed for mammography and tomosynthesis applications. It features a 5MP 21.3-inch TFT AMLCD IPS color panel, providing exceptional image clarity and color accuracy for diagnostic use. The display is equipped with a 14-bit Look-Up Table, Embedded IQ Sensor®, and PrivateLite® technology, supporting both DisplayPort and DVI digital video inputs for versatile connectivity.

Key Features

• 5MP 21.3″ Mammo Tomosynthesis Color Display
• 14-bit Look-Up Table
• Embedded IQ Sensor®
• PrivateLite®
• DisplayPort & DVI

Specifications

• Model: CX50N
• LCD Panel: TFT AMLCD IPS Color
• Native Resolution: 2048(H) x 2560(V)
• Pixel Pitch: 0.165mm x 0.165mm
• Active Display Area: 422.4mm x 337.92mm (16.6”x13.3”)
• Active Screen Size (Diagonal): 540.9mm (21.3”)
• Viewing Angle (Typ): 178º,178º at 10:1 Contrast Ratio
• Brightness Max. (Typ): 1100cd/m²
• Brightness Calibrated (Typ): 450cd/m²
• Contrast Ratio (Typ): 1000:1
• Bit Rate for Look-Up Table: 14-bit
• Digital Video Input: DVI-D, DisplayPort
• Display Communication: DDC2B (VESA Standard Compliance)
• Universal Serial Bus (USB): 1 up and 3 down-streams
• Power Supply: AC Input: 100-240Volt±10% / 60Hz/50Hz±3Hz | DC Output: +24V
• Built-in Sensors: IQ Sensor III®, SBC, DAC
• Luminance Uniformity Control (LUC): Yes
• Display Adjustments: Menu, Enter, Down, Up, Lamp, Power
• OSD Languages: English, German, French, Spanish, Italian, Russian, Japanese, Chinese, Korean
• LED Light (PrivateLite®): Yes
• Power Consumption: Max: 100W, Power Save: 2W
• Tilt/Swivel/Height Adjustments: -3º,+15º/±20º/110mm
• Portrait/Landscape Rotation: 90º (Counter clockwise)
• Mounting Hole: VESA Standard (100mmx100mm)
• Weight: 11.0Kg(24.25lb) with Stand
• Dimension: 390.3mm(W)x520.1mm(H)x248.8mm(D)
• Operational Temperature: 0ºC to 40ºC (32ºF to 104ºF)
• Operational Humidity: 8% to 80%
• Storage Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
• Certifications and Standards: ANSI/AAMI ES 60601-1, CAN/CAS C22.2 No.60601.1, IEC/EN60601-1, FDA510(k), FCC Class B, CE, VCCI Class B, KC, ICES-003-B, C-Tick, CCC
• Options: Protective Glass
