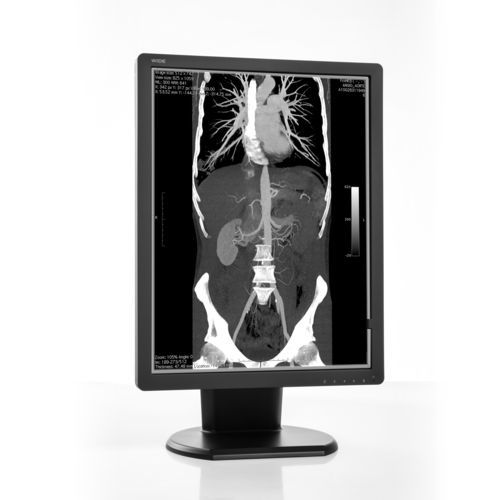

Diagnostic display MX30N
medical imaging2048 x 153621.3in

Diagnostic display - MX30N - Wide USA Corporation - medical imaging / 2048 x 1536 / 21.3in
Diagnostic display - MX30N - Wide USA Corporation - medical imaging / 2048 x 1536 / 21.3in
Add to favorites
Compare this product

Characteristics

Applications
medical imaging, diagnostic
Resolution
2048 x 1536
Display size
21.3in
Technology
LCD
Options
monochrome
Aspect ratio
4:3
Input
DisplayPort, DVI
Brightness (cd/m²)

2,000 cd

Power consumption

50 W

Viewing angle

178 °

Weight

10.1 kg
(22.3 lb)

Width

36.6 cm
(14.4 in)

Height

51.9 cm
(20.4 in)

Depth

24.9 cm
(9.8 in)

Description

The 21.3″ 3mp Diagnostic Mono Display (MX30N) is a high-performance medical imaging monitor designed for diagnostic applications. It features a 3MP 21.3-inch grayscale TFT AMLCD IPS panel, offering high brightness and contrast for precise image interpretation. The display is equipped with advanced technologies such as a 14-bit Look-Up Table, Embedded IQ Sensor®, and PrivateLite® for enhanced image quality and user experience. Connectivity options include DisplayPort and DVI, ensuring compatibility with various medical imaging systems.

Main Features
  • 3MP 21.3″ Diagnostic Mono Display
  • 14-bit Look-Up Table
  • Embedded IQ Sensor®
  • PrivateLite®
  • DisplayPort & DVI

Technical Specifications
  • Model: MX30N
  • LCD Panel: TFT AMLCD IPS Grayscale
  • Native Resolution: 1536(H) x 2048(V)
  • Pixel Pitch: 0.2115mm X 0.2115mm
  • Active Display Area: 431.923mm X 323.942mm (17.0”X12.8”)
  • Active Screen Size (Diagonal): 541.4mm (21.3”)
  • Viewing Angle (Typ): 178º,178º at 10:1 Contrast Ratio
  • Brightness Max. (Typ): 2000cd/m²
  • Brightness Calibrated (Typ): 500cd/m²
  • Contrast Ratio (Typ): 1500:1
  • Bit Rate for Look-Up Table: 14-bit
  • Digital Video Input: DVI-I, DisplayPort
  • Display Communication: DDC2B (VESA Standard Compliance)
  • Universal Serial Bus (USB): 1 up and 3 down-streams
  • Power Supply: AC Input: 100-240Volt±10% / 60Hz/50Hz±3Hz | DC Output: +24V
  • Built-in Sensors: IQ Sensor III®, SBC, DAC
  • Luminance Uniformity Control (LUC): Yes
  • Display Adjustments: Menu, Enter, Down, Up, Lamp, Power
  • OSD Languages: English, German, French, Spanish, Italian, Russian, Japanese, Chinese, Korean
  • LED Light (PrivateLite®): Yes
  • Power Consumption: Max: 50W, Power Save: 2W
  • Tilt/Swivel/Height Adjustments: -3º,+15º/±20º/110mm
  • Portrait/Landscape Rotation: 90º (Counter clockwise)
  • Mounting Hole: VESA Standard (100mmx100mm)
  • Weight: 10.1Kg(22.27lb) with Stand
  • Dimension: 366.0mm(W)x518.8mm(H)x248.8mm(D)
  • Operational Temperature: 0ºC to 40ºC (32ºF to 104ºF)
  • Operational Humidity: 8% to 80%
  • Storage Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
  • Certifications and Standards: ANSI/AAMI ES 60601-1, EN60601-1, IEC60601-1, CE, VCCI, KC, C-Tick, FCC
  • Options: Protective Glass
