Diagnostic display CW60N
medical imaging30"LCD

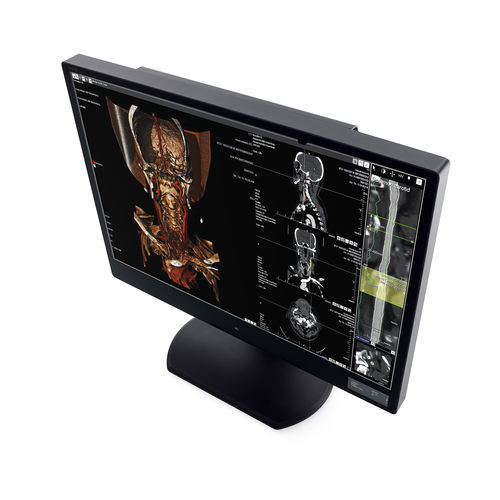

Diagnostic display - CW60N - Wide USA Corporation - medical imaging / 30" / LCD
Diagnostic display - CW60N - Wide USA Corporation - medical imaging / 30" / LCD
Add to favorites
Compare this product

Characteristics

Applications
medical imaging, diagnostic
Display size
30"
Technology
LCD
Input
DisplayPort
Brightness (cd/m²)

1,300 cd

Power consumption

180 W

Viewing angle

178 °

Weight

19.7 kg
(43.4 lb)

Width

69.2 cm
(27.2 in)

Height

64.3 cm
(25.3 in)

Depth

28.3 cm
(11.1 in)

Description

The WIDE 30″ 6mp Diagnostic Color Display (CW60N) is a high-performance medical imaging monitor designed to deliver precise and reliable diagnostic results. Featuring advanced technologies such as 14-bit grayscale expression, built-in IQ Sensor® II for DICOM calibration, Luminance Uniformity Control (LUC), and Digital Ambient Control (DAC), this display is engineered for demanding clinical environments.

Main Features
  • 14-bits Grayscales for Precise Expression
  • Built-in IQ Sensor® II for DICOM Calibration
  • Luminance Uniformity Control (LUC)
  • Digital Ambient Control (DAC)

Technical Specifications
  • Model: CW60N
  • LCD Panel: TFT AMLCD IPS Color
  • Native Resolution: 3280(H) x 2048(V)
  • Pixel Pitch: 0.197mm x 0.197mm
  • Active Display Area: 645.504mm x 403.0464mm (25.4”x15.9”)
  • Active Screen Size (Diagonal): 761.0mm (30.0”)
  • Viewing Angle (Typ): 178º,178º at 10:1 Contrast Ratio
  • Brightness Max. (Typ): 1300cd/m²
  • Brightness Calibrated (Typ): 500cd/m²
  • Contrast Ratio (Typ): 2000:1
  • Bit Rate for Look-Up Table: 14-bit
  • Digital Video Input: Dual DisplayPort
  • Display Communication: DDC2B (VESA Standard Compliance)
  • Universal Serial Bus (USB): 1 up and 2 down-streams
  • Power Supply: AC Input 100-240Volt±10%/60Hz/50Hz±3Hz | DC Output +24V
  • Built-in Sensors: IQ Sensor®, SBC¹, DAC², Human Sensor
  • Luminance Uniformity Control (LUC): Yes
  • Display Adjustments: Menu, Enter, Down, Up, Lamp, Power
  • OSD Languages: English
  • LED Light (AmbientLite®): Yes
  • LED Light (PrivateLite®): Yes
  • Power Consumption: Max: 180W, Typical: 110W
  • Tilt/Swivel/Height Adjustments: -3º,+15º/±20º/110mm
  • Portrait/Landscape Rotation: –
  • Mounting Hole: VESA Standard (100mmx100mm)
  • Weight: 19.66Kg (43.35lb) with Stand
  • Dimension: 692.0mm(W)x642.7mm(H)x283.0mm(D)
  • Operational Temperature: 0ºC to 40ºC (32ºF to 104ºF)
  • Operational Humidity: 8% to 80%
  • Storage Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
  • Certifications and Standards: ANSI/AAMI ES 60601-1, EN60601-1, IEC60601-1, CE, VCCI, KC, C-Tick, FCC
  • Screen Protection: Protective Glass
  • Options: –
