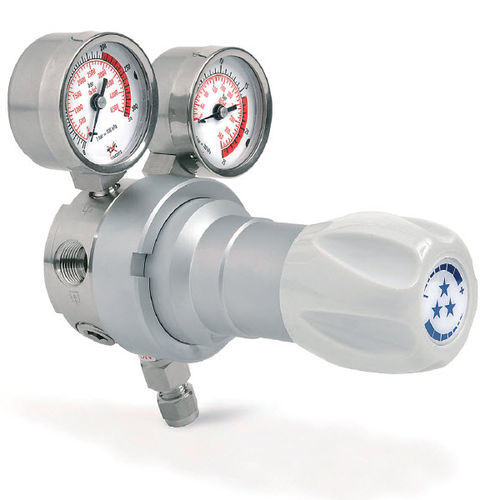

Medical gas pressure regulator S220
laboratorysingle-stagehigh-pressure

Medical gas pressure regulator - S220 - ROTAREX MEDITEC - laboratory / single-stage / high-pressure

Medical gas pressure regulator - S220 - ROTAREX MEDITEC - laboratory / single-stage / high-pressure - image - 2

Add to favorites

Compare this product

Characteristics

Fluid type: medical gas
Applications: laboratory
Number of stages: single-stage
Features: high-pressure
Inlet pressure: 200 bar
(2,900.8 psi)
Output pressure: 3 bar, 15 bar, 25 bar, 50 bar
(43.5 psi, 217.6 psi, 362.6 psi, 725.2 psi)
Height: 148 mm
(5.8 in)
Weight: 2 kg
(4.4 lb)
Width: 116.5 mm
(4.6 in)

Description

S220 high pressure cylinder regulator is designed for corrosive gases and liquid gases. It is particularly suited for ultra-high applications and fundamental research laboratories. A cylinder connector is necessary to connect it to the cylinder valve. Key advantages No Contamination risk due to its threadless and springless design Low Dead Volume to guarantee a good regulator purge Ergonomic handwheel for exceptional control Panel mounting possible due to the rear thread Can be equipped with a shut off or needle valve at the outlet Specifications Female ports 16 x 1.336 (inlet) - G3/8 (outlet) Seat seal PCTFE O-ring FPM Diaphragm Hastelloy® Leak rate 3.10-9 M bar l/s Gauges High and low pressure (M10 x 1 or 1/4 NPT) Nominal flow 5/25/50/50 Nm3/h (n2) Oxygen use OK with inlet pressure ≤ 30 bar max Temperature range -20°C to +60°C -4°F to +140°F
