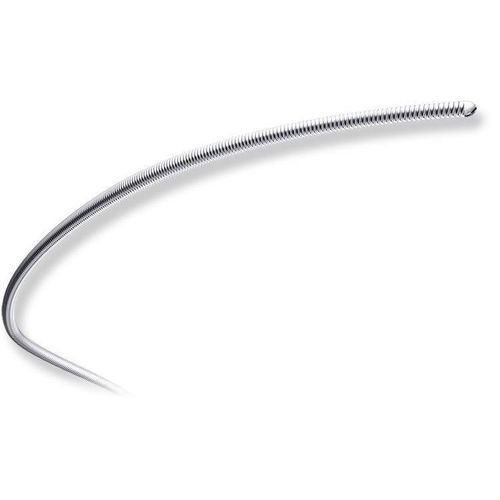

Catheter guidewire Gaia PV

arterialperipheralhydrophilic

Short description
Deflection and directional control with balanced penetration force and torque response. The ASAHI Gaia PV guidewire is intended for peripheral vascular and complex lesion crossing, combining a micro-cone ball tip, tip flexibility and ACT ONE multi-wire coil technology to enable controlled advancement.

Key features

• Micro-cone tip penetrability: reduced ball tip diameter improves entry through hard tissue and fibrous cap.
• Tip flexibility and deflection control: flexible tip avoids hard tissue and enables rotational deflection to guide the wire into the distal true lumen.
• 1 mm pre-shaped tip: factory pre-shape improves tip shape retention and steering consistency.

Technology
ACT ONE: a multi-wire coil technology using proprietary wire drawing, forming and torque processes. ACT ONE optimizes the balance of torque force, torque response, durability and rigidity in guidewires and microcatheters for high performance during lesion crossing. A product-related video (ACT ONE) is available on the product page.

Product Spec
Tip Load: 7.5gf
Tip Shape: Pre-shape
Radiopaque Length: 15cm
Coating: Hydrophilic (Uncoated Ball Tip)
Usable Length: 200cm / 235cm / 300cm
Structure: (structure illustration provided on product page)
Category: #Guidewire; #0.018"

Order information (catalog examples)
PHW18R102P — ASAHI Gaia PV — Tip Shape: Pre-shape — Usable Length: 200cm — Outer Diameter: 0.45mm (0.018") — Coating: Hydrophilic (Uncoated Ball Tip) — Coating Length: 16cm — Coil length: 15cm — Radiopaque Length: 15cm
PHW18R102S — ASAHI Gaia PV — Tip Shape: Straight — Usable Length: 200cm — Outer Diameter: 0.45mm (0.018") — Coating: Hydrophilic (Uncoated Ball Tip) — Coating Length: 16cm — Coil length: 15cm — Radiopaque Length: 15cm
PHW18R202P — ASAHI Gaia PV — Tip Shape: Pre-shape — Usable Length: 235cm — Outer Diameter: 0.45mm (0.018") — Coating: Hydrophilic (Uncoated Ball Tip) — Coating Length: 16cm — Coil length: 15cm — Radiopaque Length: 15cm
PHW18R202S — ASAHI Gaia PV — Tip Shape: Straight — Usable Length: 235cm — Outer Diameter: 0.45mm (0.018") — Coating: Hydrophilic (Uncoated Ball Tip) — Coating Length: 16cm — Coil length: 15cm — Radiopaque Length: 15cm
PHW18R302P — ASAHI Gaia PV — Tip Shape: Pre-shape — Usable Length: 300cm — Outer Diameter: 0.45mm (0.018") — Coating: Hydrophilic (Uncoated Ball Tip) — Coating Length: 16cm — Coil length: 15cm — Radiopaque Length: 15cm
PHW18R302S — ASAHI Gaia PV — Tip Shape: Straight — Usable Length: 300cm — Outer Diameter: 0.45mm (0.018") — Coating: Hydrophilic (Uncoated Ball Tip) — Coating Length: 16cm — Coil length: 15cm — Radiopaque Length: 15cm

Notes
'ASAHI Gaia' is a trademark or a registered trademark of ASAHI INTECC CO., LTD. Tip load values are company standardized test values; individual device values may differ.

Technical specifications

• Tip Load: 7.5gf
• Tip Shape: Pre-shape (also available Straight variants)
• Radiopaque Length: 15 cm
• Coating: Hydrophilic (Uncoated Ball Tip)
• Usable Length options: 200 cm, 235 cm, 300 cm
• Outer Diameter: 0.45 mm (0.018")
• Coating Length: 16 cm
• Coil length: 15 cm
• Structure: multi-component guidewire structure (illustration available on product page)
• Technology: ACT ONE multi-wire coil for optimized torque force/response and durability
