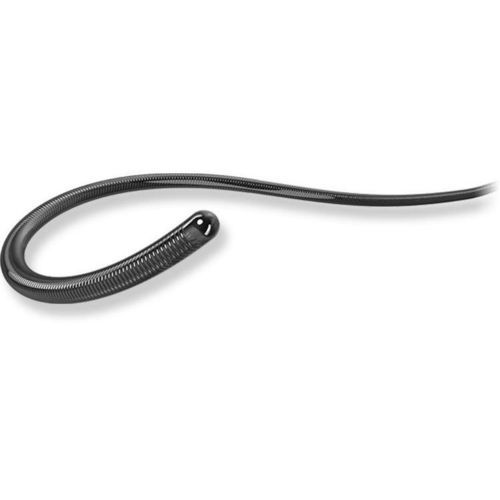

Catheter guidewire Gladius MG18 PV ES

peripheralhydrophilic

Overview
Guidewire designed to facilitate peripheral chronic total occlusion (CTO) crossing. Modified distal core with a micro gap forms a narrow loop to reduce lesion resistance and limit subintimal expansion.

Key features

• Narrow Loop: Micro Gap — Maintains a narrow loop during lesion crossing to minimize resistance and reduce the tendency to expand the subintimal space.
• Lasting Lubricity: Polymer jacket & Hydrophilic coating — High lubricity supports smooth advancement in long occluded segments.
• Tip durability: Narrow-loop design reduces deformation risks such as kinking and torsion compared with conventional designs.
• Mini Pre-shape: Can be formed into larger curves as required by the procedure while preserving shape retention.

Technology — ACT ONE
ACT ONE is a multi-wire coil technology that optimizes torque force, torque response, durability and rigidity in guidewires and microcatheters to deliver consistent performance.

Product Spec
Tip Load: 3gf
Tip Shape: Pre-shape
Radiopaque Length: 4.5cm
Coating: Polymer＋Hydrophilic
Usable Length: 190cm / 235cm / 300cm
Structure: (illustrated structure image available on product page)
Category: Guidewire, 0.018"

Order information (representative variants)
Product Name: ASAHI Gladius MG18 PV ES — Catalog No.: PP18R004P — Tip Shape: Pre-shape — Usable Length: 190cm — Outer Diameter: 0.46mm (0.018") — Coating: Polymer Jacket + Hydrophilic Coating — Coating Length: 10cm — Coil length: 4.5cm — Radiopaque Length: 4.5cm

Product Name: ASAHI Gladius MG18 PV ES — Catalog No.: PP18R004S — Tip Shape: Straight — Usable Length: 190cm — Outer Diameter: 0.46mm (0.018") — Coating: Polymer Jacket + Hydrophilic Coating — Coating Length: 10cm — Coil length: 4.5cm — Radiopaque Length: 4.5cm

Product Name: ASAHI Gladius MG18 PV ES — Catalog No.: PP18R204P / PP18R204S — Tip Shape: Pre-shape / Straight — Usable Length: 235cm — Outer Diameter: 0.46mm (0.018") — Coating: Polymer Jacket + Hydrophilic Coating — Coating Length: 10cm — Coil length: 4.5cm — Radiopaque Length: 4.5cm

Product Name: ASAHI Gladius MG18 PV ES — Catalog No.: PP18R304P / PP18R304S — Tip Shape: Pre-shape / Straight — Usable Length: 300cm — Outer Diameter: 0.46mm (0.018") — Coating: Polymer Jacket + Hydrophilic Coating — Coating Length: 10cm — Coil length: 4.5cm — Radiopaque Length: 4.5cm

Notes
* All data were obtained by company standardized tests and may differ from industry standardized tests. Individual devices may show variation in measured values.
