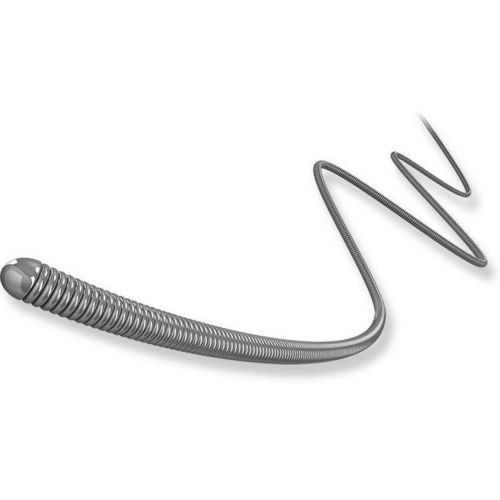

Catheter guidewire Halberd 0.014

coronaryhydrophilic

Short description
Stiff-tip guidewire designed for precise torque control and high penetration to cross resistant lesions, suitable for CTO procedures.

Key features

• Micro-cone ball tip increases penetration efficacy for crossing CTO lesions
• Mini pre-shape: 1 mm pre-shaped tip for easier navigation and efficient reshaping
• Shape retention: Maintains and adapts tip shape during the procedure for directional control
• Armored tip: Soldered reinforcement from pre-shaped section to ball tip for improved steering in calcified occlusions
• Hydrophilic coating with uncoated ball tip for balanced lubricity and tactile feedback

Technology
ACT ONE multi-wire coil optimizes torque transfer, torque response, durability and rigidity in guidewires and microcatheters for consistent performance during crossing and device delivery.

Product Spec

• Tip Load: 12 gf
• Tip Shape: Pre-shape or Straight (varies by reference)
• Outer Diameter: 0.36 mm (0.014 inch)
• Radiopaque Length: 5 cm
• Coating: Hydrophilic (Uncoated Ball Tip)
• Coating Length: 33 cm
• Usable Lengths: 200 cm / 235 cm / 300 cm
• Category: Guidewire 0.014 inch

Order Information (selected variants)

• PHW14R101P — Pre-shape — Usable Length 200 cm — Outer Diameter 0.36 mm — Coating Hydrophilic (Uncoated Ball Tip) — Radiopaque Length 5 cm
• PHW14R101S — Straight — Usable Length 200 cm — Outer Diameter 0.36 mm — Coating Hydrophilic (Uncoated Ball Tip) — Radiopaque Length 5 cm
• PHW14R201P — Pre-shape — Usable Length 235 cm — Outer Diameter 0.36 mm — Coating Hydrophilic (Uncoated Ball Tip) — Radiopaque Length 5 cm
• PHW14R201S — Straight — Usable Length 235 cm — Outer Diameter 0.36 mm — Coating Hydrophilic (Uncoated Ball Tip) — Radiopaque Length 5 cm
• PHW14R301P — Pre-shape — Usable Length 300 cm — Outer Diameter 0.36 mm — Coating Hydrophilic (Uncoated Ball Tip) — Radiopaque Length 5 cm
• PHW14R301S — Straight — Usable Length 300 cm — Outer Diameter 0.36 mm — Coating Hydrophilic (Uncoated Ball Tip) — Radiopaque Length 5 cm

Notes
Tip load values are company-standardized test results; individual device values may vary.
