Catheter guidewire Gladius 0.018

peripheralcoronaryhydrophilic

Summary

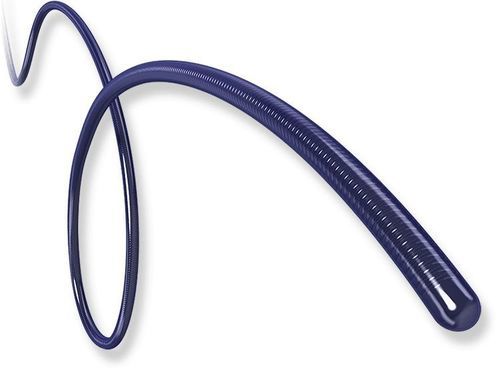

ASAHI Gladius 0.018 is a 0.018" guidewire designed for device delivery with balanced shaft support, improved pushability and maneuverability. Suitable for a broad range of peripheral and coronary cases including simple stenoses and occluded lesions.

Key features

• Moderate tip load with good support: 4.0 gf tip load for 0.018" enables use as a soft wire across varied lesion types.
• Tip durability: ACT ONE construction retains core-wire integrity for use in occluded lesions and multi-vessel procedures.
• Mini-preshape: 1 mm pre-shaped tip from manufacturing for easier shaping and consistent handling.
• Polymer jacket for lubricity: Facilitates crossing of calcified lesions and fibrous occlusions.
• Pushability: Balanced multi-component shaft design transmits push force effectively; smooth shaft profile supports tortuous anatomy and crossover approaches.

Technology

• ACT ONE: Multi-wire coil using advanced wire-drawing, forming and torque technologies to optimize torque transmission, response, durability and rigidity in guidewires and microcatheters.

Product Spec

• Tip Load: 4 gf
• Tip Shape: Straight / Pre-shape (1 mm mini-preshape)
• Radiopaque Length: 4 cm
• Coating: Polymer jacket + Hydrophilic coating
• Usable Length: 200 cm / 235 cm / 300 cm
• Outer Diameter: 0.45 mm (0.018")
• Coating Length: 10 cm
• Coil Length: 5 cm
• Structure: Multi-component shaft with ACT ONE multi-wire coil (structure diagram available)

Order Information (representative catalog variants)

• ASAHI Gladius 0.018 | Catalog No.: PPW18R100P | Tip Shape: Pre-shape | Usable Length: 200 cm | Outer Diameter: 0.45 mm (0.018") | Coating: Polymer Jacket + Hydrophilic Coating | Coating Length: 10 cm | Coil Length: 5 cm | Radiopaque Length: 4 cm
• ASAHI Gladius 0.018 | Catalog No.: PPW18R100S | Tip Shape: Straight | Usable Length: 200 cm | Outer Diameter: 0.45 mm (0.018") | Coating: Polymer Jacket + Hydrophilic Coating | Coating Length: 10 cm | Coil Length: 5 cm | Radiopaque Length: 4 cm
• ASAHI Gladius 0.018 | Catalog No.: PPW18R200P | Tip Shape: Pre-shape | Usable Length: 235 cm | Outer Diameter: 0.45 mm (0.018") | Coating: Polymer Jacket + Hydrophilic Coating | Coating Length: 10 cm | Coil Length: 5 cm | Radiopaque Length: 4 cm
• ASAHI Gladius 0.018 | Catalog No.: PPW18R200S | Tip Shape: Straight | Usable Length: 235 cm | Outer Diameter: 0.45 mm (0.018") | Coating: Polymer Jacket + Hydrophilic Coating | Coating Length: 10 cm | Coil Length: 5 cm | Radiopaque Length: 4 cm
• ASAHI Gladius 0.018 | Catalog No.: PPW18R300P | Tip Shape: Pre-shape | Usable Length: 300 cm | Outer Diameter: 0.45 mm (0.018") | Coating: Polymer Jacket + Hydrophilic Coating | Coating Length: 10 cm | Coil Length: 5 cm | Radiopaque Length: 4 cm
• ASAHI Gladius 0.018 | Catalog No.: PPW18R300S | Tip Shape: Straight | Usable Length: 300 cm | Outer Diameter: 0.45 mm (0.018") | Coating: Polymer Jacket + Hydrophilic Coating | Coating Length: 10 cm | Coil Length: 5 cm | Radiopaque Length: 4 cm

Notes
* All data obtained by company standardized tests; results may differ from industry standardized tests. Values do not guarantee identical performance for all clinical scenarios.

Technical specifications

• Brand: ASAHI INTECC
• Commercial name / Model: ASAHI Gladius 0.018
• Tip Load: 4 gf
• Tip Shape: Straight or Pre-shape (1 mm mini-preshape)
• Radiopaque Length: 4 cm
• Coating: Polymer Jacket + Hydrophilic Coating
• Usable Length options: 200 cm, 235 cm, 300 cm
• Outer Diameter: 0.45 mm (0.018")
• Coating Length: 10 cm
• Coil Length: 5 cm
• Structure: Multi-component shaft with ACT ONE multi-wire coil (structure diagram available)
• Technology: ACT ONE (multi-wire coil optimizing torque, durability, rigidity)
• Intended category: Guidewire (0.018" family)
