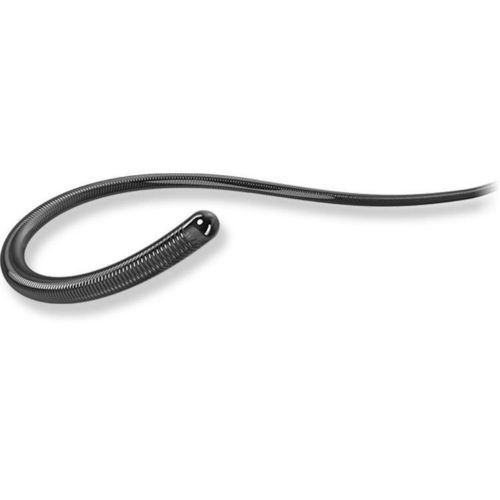

Catheter guidewire Gladius MG14 PV

peripheralhydrophilic

Overview
Advancing a tough peripheral intervention: the ASAHI Gladius MG14 PV series features a modified distal core with a micro gap to produce a narrow loop, facilitating controlled crossing of occlusions.

Key Features

• Narrow loop: Micro Gap — maintains a narrow loop when crossing occluded lesions to minimize lesion resistance and reduce subintimal expansion.
• Lasting lubricity: Polymer jacket & Hydrophilic coating — high lubricity supports smooth advancement even through long occlusions.
• Mini pre-shape: Can be shaped into a large curve per procedure needs and preserves shape retention.

Technology
ACT ONE: multi-wire coil developed with proprietary core technologies for wire drawing, forming, and torque. ACT ONE balances torque force, torque response, durability and rigidity for high-performance guidewire and microcatheter navigation.

Product Spec (table)
Tip Load: 3 gf
Tip Shape: Straight / Pre-shape
Radiopaque Length: 3 cm (Gladius MG14 PV) / 3 cm (Gladius MG14 PV ES)
Coating: Polymer + Hydrophilic
Usable Length: 190 cm / 235 cm / 300 cm
Structure: Modified distal core with micro gap to create narrow loop (see product structural illustrations on product page)
Category: Guidewire, 0.014"

Order Information (representative variants)
ASAHI Gladius MG14 PV | PP14R003P | Pre-shape | 190 cm | 0.36 mm (0.014") | Polymer Jacket + Hydrophilic Coating | Coating Length: 41 cm | Coil length: 8.5 cm | Radiopaque Length: 3 cm
ASAHI Gladius MG14 PV | PP14R003S | Straight | 190 cm | 0.36 mm (0.014") | Polymer Jacket + Hydrophilic Coating | Coating Length: 41 cm | Coil length: 8.5 cm | Radiopaque Length: 3 cm
ASAHI Gladius MG14 PV ES | PP14R004P | Pre-shape | 190 cm | 0.36 mm (0.014") | Polymer Jacket + Hydrophilic Coating | Coating Length: 10 cm | Coil length: 3 cm | Radiopaque Length: 3 cm
ASAHI Gladius MG14 PV ES | PP14R004S | Straight | 190 cm | 0.36 mm (0.014") | Polymer Jacket + Hydrophilic Coating | Coating Length: 10 cm | Coil length: 3 cm | Radiopaque Length: 3 cm
ASAHI Gladius MG14 PV | PP14R203P | Pre-shape | 235 cm | 0.36 mm (0.014") | Polymer Jacket + Hydrophilic Coating | Coating Length: 41 cm | Coil length: 8.5 cm | Radiopaque Length: 3 cm
ASAHI Gladius MG14 PV | PP14R203S | Straight | 235 cm | 0.36 mm (0.014") | Polymer Jacket + Hydrophilic Coating | Coating Length: 41 cm | Coil length: 8.5 cm | Radiopaque Length: 3 cm
ASAHI Gladius MG14 PV | PP14R303P | Pre-shape | 300 cm | 0.36 mm (0.014") | Polymer Jacket + Hydrophilic Coating | Coating Length: 41 cm | Coil length: 8.5 cm | Radiopaque Length: 3 cm
ASAHI Gladius MG14 PV | PP14R303S | Straight | 300 cm | 0.36 mm (0.014") | Polymer Jacket + Hydrophilic Coating | Coating Length: 41 cm | Coil length: 8.5 cm | Radiopaque Length: 3 cm
ASAHI Gladius MG14 PV ES | PP14R304P | Pre-shape | 300 cm | 0.36 mm (0.014") | Polymer Jacket + Hydrophilic Coating | Coating Length: 10 cm | Coil length: 3 cm | Radiopaque Length: 3 cm
ASAHI Gladius MG14 PV ES | PP14R304S | Straight | 300 cm | 0.36 mm (0.014") | Polymer Jacket + Hydrophilic Coating | Coating Length: 10 cm | Coil length: 3 cm | Radiopaque Length: 3 cm

Notes
* All data were obtained by company standardized tests and may differ from industry standardized tests. Individual device performance may vary.

Technical specifications

• Brand: ASAHI INTECC
• Commercial name / model: ASAHI Gladius MG14 PV (variants include MG14 PV ES)
• Tip load: 3 gf
• Tip shapes available: Straight and Pre-shape
• Usable lengths available: 190 cm, 235 cm, 300 cm
• Outer diameter: 0.36 mm (0.014")
• Coating: Polymer jacket + Hydrophilic coating
• Coating length (varies by variant): 41 cm or 10 cm
• Coil length (varies by variant): 8.5 cm or 3 cm
• Radiopaque marker length: 3 cm
• Structure: Modified distal core with micro gap to create narrow loop (see structural illustrations on product page)
