Catheter guidewire Halberd 0.018

coronaryhydrophilic

Overview
Stiff-tip guidewire providing precise torque control and enhanced penetration for crossing resistant and chronic total occlusion (CTO) lesions.

Key features

• Micro-cone tip increases penetration efficacy for crossing CTO lesions
• Mini pre-shape: 1 mm pre-formed curve to facilitate handling and allow manual reshaping to a more acute angle
• Improved shape retention during procedures; angle can be adapted to lesion and technique
• Hydrophilic coating with an uncoated ball tip to balance lubricity and tip performance

Technology
ACT ONE: multi-wire coil technology optimizing torque transmission, torque response, durability and rigidity for high performance in guidewires and microcatheters.

Product Spec

• Tip load: 12 gf
• Tip shape: Pre-shape (also available Straight)
• Radiopaque length: 11 cm
• Coating: Hydrophilic (Uncoated Ball Tip)
• Coating length: 12 cm
• Coil length: 11 cm
• Usable lengths: 200 cm, 235 cm, 300 cm
• Outer diameter: 0.45 mm (0.018")

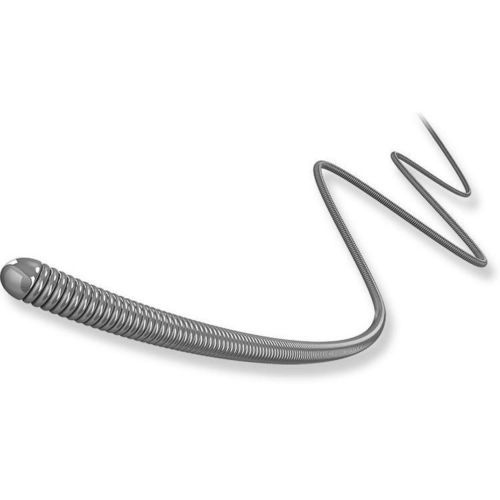

• Structure: multi-wire/coiled structure optimized for torque and durability (see product page illustration)

Ordering information (examples of available catalog variants)
ASAHI Halberd 0.018 — Catalog No. PHW18R101P — Tip Shape: Pre-shape — Usable Length: 200 cm — Outer Diameter: 0.45 mm (0.018") — Coating: Hydrophilic (Uncoated Ball Tip) — Coating Length: 12 cm — Coil length: 11 cm — Radiopaque Length: 11 cm
ASAHI Halberd 0.018 — Catalog No. PHW18R101S — Tip Shape: Straight — Usable Length: 200 cm — Outer Diameter: 0.45 mm (0.018") — Coating: Hydrophilic (Uncoated Ball Tip) — Coating Length: 12 cm — Coil length: 11 cm — Radiopaque Length: 11 cm
ASAHI Halberd 0.018 — Catalog No. PHW18R201P — Tip Shape: Pre-shape — Usable Length: 235 cm — Outer Diameter: 0.45 mm (0.018") — Coating: Hydrophilic (Uncoated Ball Tip) — Coating Length: 12 cm — Coil length: 11 cm — Radiopaque Length: 11 cm
ASAHI Halberd 0.018 — Catalog No. PHW18R201S — Tip Shape: Straight — Usable Length: 235 cm — Outer Diameter: 0.45 mm (0.018") — Coating: Hydrophilic (Uncoated Ball Tip) — Coating Length: 12 cm — Coil length: 11 cm — Radiopaque Length: 11 cm
ASAHI Halberd 0.018 — Catalog No. PHW18R301P — Tip Shape: Pre-shape — Usable Length: 300 cm — Outer Diameter: 0.45 mm (0.018") — Coating: Hydrophilic (Uncoated Ball Tip) — Coating Length: 12 cm — Coil length: 11 cm — Radiopaque Length: 11 cm
ASAHI Halberd 0.018 — Catalog No. PHW18R301S — Tip Shape: Straight — Usable Length: 300 cm — Outer Diameter: 0.45 mm (0.018") — Coating: Hydrophilic (Uncoated Ball Tip) — Coating Length: 12 cm — Coil length: 11 cm — Radiopaque Length: 11 cm

Technical specifications

• Tip load: 12 gf
• Tip shape: Pre-shape (also available Straight)
• Radiopaque length: 11 cm
• Coating: Hydrophilic (Uncoated Ball Tip)
• Coating length: 12 cm
• Coil length: 11 cm
• Usable lengths available: 200 cm, 235 cm, 300 cm
• Outer diameter: 0.45 mm (0.018")
• Structure: multi-wire/coiled structure optimized for torque and durability (illustrated on product page)
