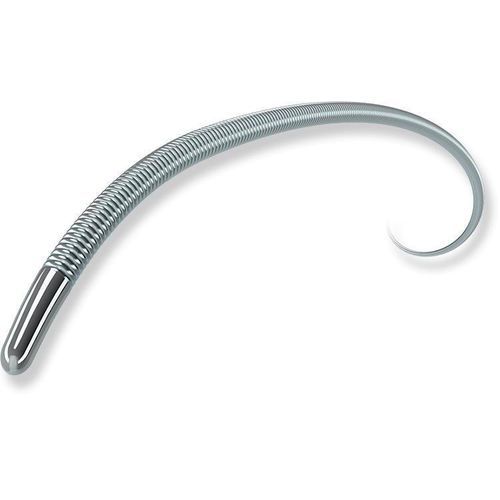

Catheter guidewire Astato 30

arterialperipheralhydrophilic

Overview
Tapered tip provides excellent penetration for crossing lesions in endovascular procedures.

Product Spec

• Tip Load: 30 gf
• Tip Shape: Straight
• Radiopaque Length: 15 cm
• Coating: Hydrophilic (Uncoated Ball Tip)
• Usable Length: 180 cm / 300 cm
• Outer Diameter: 0.33/0.45 mm (0.013/0.018")
• Coating Length: 15 cm
• Coil Length: 15 cm
• Structure: product structure illustration shown on product page

Category

• #Guidewire
• #0.018"

Order Information
Product Name | Catalog No. | Tip Shape | Usable Length | Outer Diameter | Coating | Coating Length | Coil Length | Radiopaque Length
Astato 30 | PAGH18M071 | Straight | 180 cm | 0.33/0.45 mm (0.013/0.018") | Hydrophilic (Uncoated Ball Tip) | 15 cm | 15 cm | 15 cm
Astato 30 | PAGH18M371 | Straight | 300 cm | 0.33/0.45 mm (0.013/0.018") | Hydrophilic (Uncoated Ball Tip) | 15 cm | 15 cm | 15 cm

Notes
"Astato" is a trademark or a registered trademark of ASAHI INTECC CO., LTD. in Japan and other countries.
The tip load values of our guide wires are values measured according to company standardized tests, assuming force applied by the tip against a lesion. Individual devices may vary.

Technical specifications

• Tip Load: 30 gf
• Tip Shape: Straight
• Radiopaque Length: 15 cm
• Coating: Hydrophilic (Uncoated Ball Tip)
• Usable Length: 180 cm, 300 cm
• Outer Diameter: 0.33/0.45 mm (0.013/0.018")
• Coating Length: 15 cm
• Coil Length: 15 cm
• Catalog No.: PAGH18M071 (180 cm), PAGH18M371 (300 cm)
