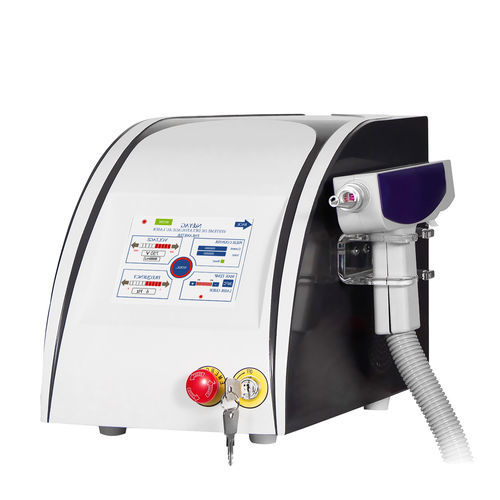

Pigmented lesion treatment laser VN5

tattoo removalNd:YAGportable

Product Summary
The Q‑Switched Nd:YAG laser VN5 (Item VN7) by VCA LASER is a portable system for professional tattoo and pigmented lesion treatment. It provides Q‑switched pulses at 1064 nm and 532 nm to fragment pigment for subsequent clearance by the immune system. Designed for clinical and aesthetic settings, the device integrates an intuitive touch interface and adjustable treatment parameters.

Who is this Nd:YAG laser designed for?

• Dermatology clinics
• Medical aesthetic centers
• Laser treatment providers and qualified practitioners

Theory
The Q‑Switched Nd:YAG emits short, high‑energy pulses at target wavelengths (1064 nm and 532 nm). Pigment particles selectively absorb the energy, leading to fragmentation into smaller particles. These fragments are then removed gradually by the patient’s immune system. The device can also address certain vascular and epidermal/dermal pigmented conditions beyond tattoo removal.

Application

• Tattoo removal (multi‑color management using 1064 nm and 532 nm)
• Vascular lesion treatment
• Skin rejuvenation and toning
• Skin resurfacing: wrinkle reduction and acne scar improvement
• Epidermal and dermal pigmented lesions: Nevus of Ota, sun damage, melasma

Features

• Portable configuration suitable for clinic and mobile use
• 5.7-inch color touch screen for parameter selection and treatment monitoring
• Multiple preset programs with memory for repeatable settings (6 independent programs)
• Aiming beam to assist target fixation and conserve pulses
• Interchangeable treatment heads (including 1064 nm and 532 nm); adjustable spot sizes
• Handle counter displays total laser shots
• Adjustable pulse repetition rate (1–6 Hz) for treatment speed control
• High-quality YAG rod and truby crystal construction for stable output and extended lifetime

Product Details (parameters)
PRODUCT DETAILS
Nd: YAG Laser Tattoo Removal
Item No.: VN7
Model: VN5
Brand: VCA LASER
Portable or Stationary: Portable
Laser Type: Q‑Switched Nd:YAG Laser
Wavelength: 1064 nm & 532 nm
Pulse energy: up to 1000 mJ (1064 nm) & 500 mJ (532 nm)
Pulse Repetition Rate: 1–6 Hz (adjustable)
Treatment spot size: 1 mm² ~ 10 mm² (adjustable)
Screen: 5.7 inch color touch screen
Cooling Way: Wind + Water
Certificate: CE1023, ISO13485
Country of Origin: China (Mainland)
Port of Loading: Beijing
Free accessories (included): Nd:YAG laser head x1; 1064 nm treatment head x1; 532 nm treatment head x1; Nd:YAG operator goggles x1; Protection glasses x1; Water tank cover x1; Inlet water tube x1; Outlet water tube x1; Key x1; Power supply wire x1

Technical specifications

• Model: VN5
• Brand: VCA LASER
• Laser type: Q‑Switched Nd:YAG
• Wavelengths: 1064 nm and 532 nm
• Pulse energy: up to 1000 mJ (1064 nm) and 500 mJ (532 nm)
• Pulse repetition rate: 1–6 Hz (adjustable)
• Treatment spot size: 1 mm² to 10 mm² (adjustable)
• Display: 5.7‑inch color touch screen
• Cooling method: Wind + Water
• Included accessories: treatment heads (1064 nm, 532 nm), operator goggles, protection glasses, water tank cover, inlet/outlet water tubes, key, power wire
• Certificates: CE1023, ISO13485
• Country of origin: China (Mainland)
