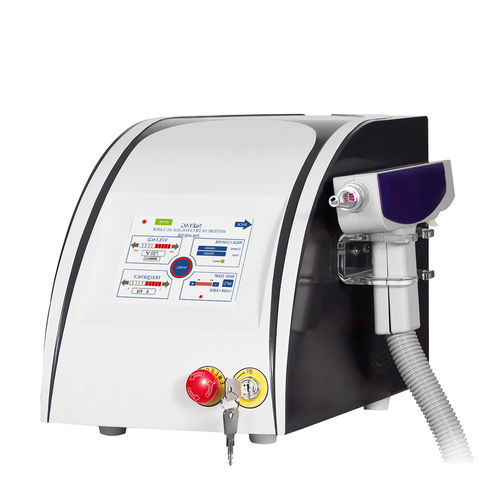

Tattoo removal laser VN5

Nd:YAGtabletoppicosecond

Product Overview
Portable picosecond Q-switched Nd:YAG laser system designed for tattoo removal and treatment of epidermal and dermal pigmented and vascular lesions. Intended for use in clinics, hospitals and professional aesthetic centers.

Theory
By emitting specific wavelengths (1064 nm and 532 nm), the Q-switched Nd:YAG laser delivers high-intensity short pulses that fragment pigment particles through photomechanical and photothermal effects. Fragmented particles are progressively cleared by the body’s immune and lymphatic systems, enabling progressive fading and removal of tattoos and other pigmented lesions.

Application

• Tattoo removal
• Vascular lesion treatment
• Skin rejuvenation
• Skin resurfacing: wrinkle reduction, acne scar reduction, skin toning
• Epidermal and dermal pigmented lesions: nevus, sun damage, melasma

Features

• Housing designed for professional clinic and salon environments
• 8.4" LCD color touch screen (some specifications reference a 5.7" color touch screen)
• 6 independent treatment programs with automatic parameter memory
• Aiming light to assist targeting and reduce wasted pulses
• Multiple treatment tips with adjustable spot sizes
• Handpiece counter displays total laser shots
• Adjustable high-frequency operation for fast treatment (specifications list 1–6 Hz; some entries indicate 1–10 Hz)
• High-quality Nd:YAG rod with premium crystal for stable output and extended service life

Free / Included Accessories (as listed)

• Nd:YAG laser head x1
• 1064 nm treatment head x1
• 532 nm treatment head x1
• Nd:YAG operator goggles x1
• Protection glasses x1
• Water tank cover x1
• Inlet water tube x1
• Outlet water tube x1
• Key x1
• Power supply cable x1

Technical specifications

• Model: VN5
• Item No.: VN7
• Brand: VCA LASER
• Laser type: Q-Switched Nd:YAG (Picosecond Q-Switch)
• Type: Picosecond laser
• Wavelengths: 1064 nm & 532 nm
• Pulse energy: 1000 mJ & 500 mJ
• Pulse repetition rate: adjustable (typically 1–6 Hz; some listings indicate 1–10 Hz)
• Treatment area / spot size: 1 mm² ~ 10 mm²
• Screen: 8.4" LCD color touch screen (also referenced as 5.7" in some specs)
• Cooling method: Air + Water
• Configuration: Portable
• Certificates: CE1023, ISO13485
• Country of origin: China (Mainland)
• Port of loading: Beijing
