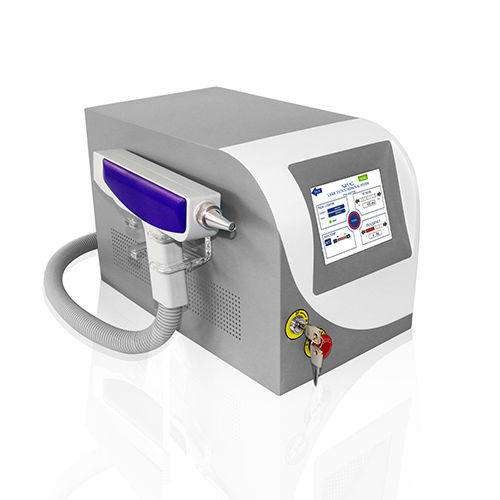

Tattoo removal laser VN7

Nd:YAGtabletop

Product Name VCA LASER VN7 — Q-Switched Nd:YAG Laser for Tattoo Removal and Pigmentation Treatment

Theory The system delivers Q-switched Nd:YAG pulses at 1064 nm and 532 nm that are selectively absorbed by target pigments. High-energy pulses produce a photomechanical effect that fragments pigment particles; larger fragments may be ejected and residual particles are gradually cleared by the body’s immune system. Normal skin absorbs relatively little energy at these wavelengths, enabling selective targeting of pigments while minimizing collateral tissue damage.

Application

• Removal of tattoos in colors including black, blue, brown and red.
• Removal of cosmetic tattoos: eyebrow, eyeliner, lip line and eyelid pigments.
• Treatment of pigmentary lesions: freckles, age spots, café-au-lait spots, nevi, post-inflammatory and traumatic pigmentation.
• Skin brightening and rejuvenation, improvement of acne scars and pore size reduction.

Features

• Infrared aiming beam for accurate spot placement and efficient treatment delivery.
• Multilingual, selectable touchscreen interface for clinical workflows.
• High-power handpiece with adjustable output energy.
• Integrated laser cavity design to reduce vibration and ensure stable beam quality.
• Green power supply compliant with European CE standard for reliable operation and simplified maintenance.
• Q-switched system using UK-imported lamp for extended lifetime.
• Diffuse-reflection cavity to enhance reflection efficiency and power endurance.

Product Details Item No.: VN7
Model: VN7
Brand: VCA LASER
Portable or Stationary: Portable
Laser Type: Q-Switched Nd:YAG Laser
Wavelength: 1064 nm & 532 nm
Pulse Energy: 1000 mJ (1064 nm) & 500 mJ (532 nm)
Pulse Repetition Rate: 1–6 Hz, adjustable
Treatment Spot Size: 1 mm² – 10 mm²
Display: 5.7 inch color touch screen
Cooling Method: Wind + Water
Certificates: CE1023, ISO13485
Country of Origin: China (Mainland)
Port of Loading: Beijing

Free Accessories

• Nd:YAG laser head x1
• 1064 nm treatment head x1
• 532 nm treatment head x1
• Operator goggles (Nd:YAG) x1
• Protective glasses x1
• Water tank cover x1
• Inlet water tube x1
• Outlet water tube x1
• Key x1
• Power cord x1

Technical Specifications

• Model: VN7
• Brand: VCA LASER
• Laser Type: Q-Switched Nd:YAG
• Wavelengths: 1064 nm and 532 nm
• Pulse Energy: 1000 mJ (1064 nm) & 500 mJ (532 nm)
• Pulse Repetition Rate: 1–6 Hz (adjustable)
• Treatment Spot Size: 1 mm² – 10 mm²
• Display: 5.7 inch color touch screen
• Cooling Method: Wind + Water
• Certificates: CE1023, ISO13485
• Country of Origin: China (Mainland)
• Port of Loading: Beijing
