Dermatology laser VN7

skin rejuvenationtattoo removalNd:YAG

Overview

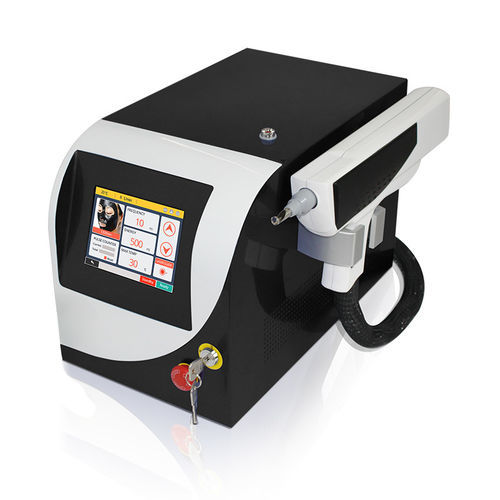

This Q‑switched Nd:YAG laser system VN7 by VCA LASER is designed for aesthetic and dermatology clinics to remove tattoos, pigmented lesions and to perform selected skin rejuvenation procedures. The device emits short high‑energy pulses that penetrate the epidermis to fragment pigment particles for subsequent biological clearance.

Product Brief

• Feature: Tattoo Remover Laser (Q‑switched Nd:YAG)
• Model: VN7
• Brand: VCA LASER
• Warranty: 3 years; lifetime technology support
• Screen Display: 8.4 inch touch screen
• OEM & ODM: professional design and production available

Key Functions & Indications
The system is indicated for removal of professional and amateur tattoos, tattooed cosmetics, epidermal and some dermal pigmented lesions, and selected skin rejuvenation treatments using dedicated heads. Typical indications include tattoo removal, Nevus of Ota and other birthmarks, warts, eyebrow and lip tattoo removal, freckles and age spots, and targeted whitening/rejuvenation protocols.

Wavelengths / Treatment Heads

• 1064 nm: removal of black/blue pigments (dermal)
• 532 nm: removal of red/brown pigments (epidermal)
• 1320 nm: skin rejuvenation and whitening applications
• 755 nm head: optimized for blue/dark pigment removal
• LP probe: option for skin rejuvenation (White doll treatment)

Design & Safety Features

• Stable and controlled laser output with selectable single or dual rod configuration
• Water filter and circulation system for thermal management
• Interlock safety design and clinical‑grade protections
• Modular architecture for simplified maintenance
• IC card management and RTL operation system for user control and record keeping

Clinical Advantages

• Targeted pigment fragmentation with reduced exposure to surrounding tissues
• Configurable treatment heads to address multiple indications
• Modular design to facilitate service and component replacement
• Touchscreen interface and clinic‑oriented controls to support workflow

Technical specifications

• Model: VN7
• Brand: VCA LASER
• Feature: Tattoo Remover Laser (Q‑switched Nd:YAG)
• Warranty: 3 years; lifetime technology support
• Screen: 8.4 inch touch screen
• Wavelengths: 1064 nm, 532 nm, 1320 nm; 755 nm head available
• Cooling/water system: filtered circulation
• Safety: interlock design
• Control: IC card management; RTL operation system
• Design: modular; single or dual rod selectable
