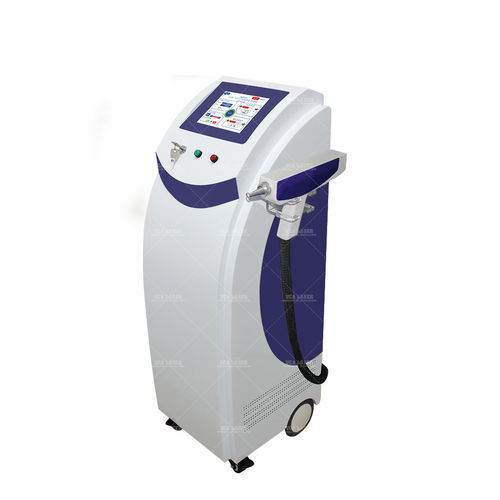

Skin rejuvenation laser VN9

tattoo removalNd:YAGportable

Product Overview
532nm & 1064nm Nd:YAG Laser System for multi-color tattoo removal. Laser emitted by the system has a strong penetration ability allowing it to reach deep dermal layers. Pigment particles absorb light energy, explode into tiny pieces and diminish color density while leaving surrounding tissue intact (selective heat absorption principle).

Theory
Laser emitted by the system has a strong penetration ability which allows it to reach the deep layer of dermis. The pigment particles absorb the light energy and explode sharply, burst into the tiny pieces, thus diminish the color density and get rid of it. The appliance can effectively remove abnormal pigmentations and vascular tissue based on undamaged ambient tissue (Selective heat absorption).

Application

• Remove tattoos including red, brown, blue and black
• Remove tattoos on eyelid, eyebrow, eye line, lip line
• Remove freckles, age spots, birthmarks, nevus, sunburn spots, traumatic pigmentation
• Skin whitening, skin rejuvenation, acne removal, pore treatment (indicated for certain treatment heads/modes)

Main Features

• Dual wavelengths: 1064 nm (deep penetration) and 532 nm (superficial/hemoglobin & melanin absorption) for multi-color tattoo removal
• Q-Switched Nd:YAG laser technology
• Adjustable pulse repetition rate and pulse energy for targeted treatments
• Three combined cooling functions for faster heat dissipation (Wind + Water cooling)
• Designed to eliminate pigment without destroying normal tissue and minimizing scar formation
• Suitable for hospitals, clinics and high-end beauty salons

Included / Free Accessories

• Nd:YAG Laser head x1
• 1064nm treatment head x1
• 532nm treatment head x1
• Nd:YAG Laser operator goggle x1
• Protection glasses x1
• Water tank cover x1
• Inlet water tube x1
• Outlet water tube x1
• Key x1
• Power supply wire x1

Product Details / Parameters
Item No. : VN7
Model : VN9
Laser Type : Q-Switched Nd:YAG Laser
Wavelength : 1064nm & 532nm
Pulse energy : 1000mj & 500mj
Pulse Repetition Rate : 1~6Hz, adjustable
Treatment Area : 1 mm2 ~ 10 mm2
Screen : 5.7 inch color touch
Cooling Way : Wind + Water
Certificate : CE1023, ISO13485
Country of Origin : China (Mainland)
Port of Loading : Beijing

Why 532nm and 1064nm?

• 1064 nm: natural emission of Nd3+ in YAG crystal; deep tissue penetration, low scattering, effective for pigmented targets (black/blue inks, deeper lesions)
• 532 nm: frequency-doubled 1064 nm; strongly absorbed by hemoglobin and melanin, effective for superficial vascular lesions, pigmented spots and red/yellow tattoos

Notes
Non-portable/portable variants noted in documentation; intended for professional aesthetic and dermatological use. Treatment head selection (532nm vs 1064nm) allows targeting of different tattoo ink colors and pigment depth.

Caractéristiques / spécifications techniques

• Model: VN9
• Brand: VCA LASER
• Laser Type: Q-Switched Nd:YAG Laser
• Wavelengths: 1064 nm & 532 nm
• Pulse Energy: 1000 mj (presumably for one wavelength) & 500 mj (other wavelength)
• Repetition Rate: 1–6 Hz (adjustable)
• Treatment Spot Size / Area: 1 mm2 – 10 mm2
• Display: 5.7" color touch screen
• Cooling: Wind + Water combined cooling
• Certificates: CE1023, ISO13485
• Country of Origin: China (Mainland)
