Dermatology laser VN18

Nd:YAGnanosecond

Product name

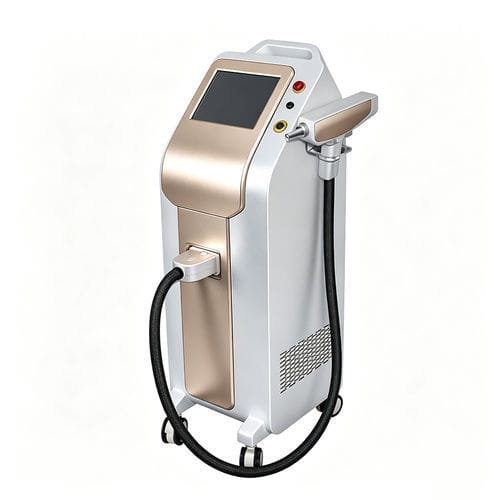

Q-Switched Nd:YAG Laser System VN18 by VCA LASER – 1064nm & 532nm for tattoo removal

Overview
Type: Medical/esthetic laser device
Theory: Q-switched Nd:YAG laser (short, high‑peak pulses for pigment fragmentation)
Application: Dermatology clinics, medical spas, aesthetic centers
Portable: No
Voltage: 110V-240V / 50-60Hz
Plugs Type: Cn, Other, Jp, Us, EU, Au, UK, Za, It

Operating principle
Q-switched Nd:YAG lasers emit short, high-energy pulses in the nanosecond range. The intense pulses produce photomechanical and photothermal effects that fragment intra-epidermal and dermal pigment particles, facilitating clearance by physiological processes while limiting thermal spread to surrounding tissue.

Clinical applications

• Tattoo removal (multi-color, professional and amateur inks)
• Removal of pigmented lesions (epidermal and dermal)
• Vascular lesion treatment (select cases)
• Skin resurfacing and rejuvenation adjunct treatments
• Reduction of certain pigmented nevi and sun damage

Key advantages

• Dual wavelengths (1064 nm & 532 nm) cover deeper and superficial pigments.
• Adjustable pulse repetition rate (1–6 Hz) and treatment area for tailored protocols.
• High pulse energy options for efficient pigment fragmentation.
• Color touch screen interface (5.7 inch) for intuitive parameter control.
• Combined wind+water cooling for stable operation during sessions.

Free accessories (included)

• Nd:YAG laser head x1
• 1064 nm treatment head x1
• 532 nm treatment head x1
• Nd:YAG operator goggles x1
• Protection glasses x1
• Water tank cover x1
• Inlet water tube x1
• Outlet water tube x1
• Key x1
• Power supply wire x1

Product details
Item No.: VN7
Model: VN18
Brand: VCA LASER
Laser Type: Q-Switched Nd:YAG Laser
Wavelength: 1064nm & 532nm
Pulse Energy: 1000 mj & 500 mj
Pulse Repetition Rate: 1~6 Hz (adjustable)
Treatment Area: 1 mm2 ~ 10 mm2
Screen: 5.7 inch color touch
Cooling: Wind + Water
Certificates: CE1023, ISO13485
Country of Origin: China (Mainland)
Port of Loading: Beijing

Technical specifications

• Model: VN18
• Item No.: VN7
• Brand: VCA LASER
• Type: Laser medical device
• Laser Type: Q-Switched Nd:YAG Laser
• Wavelength: 1064nm & 532nm
• Pulse Energy: 1000 mj & 500 mj
• Pulse Repetition Rate: 1~6 Hz (adjustable)
• Treatment Area: 1 mm2 ~ 10 mm2
• Screen: 5.7 inch color touch
• Cooling Method: Wind + Water
• Voltage: 110V-240V / 50-60Hz
• Plugs Type: Cn, Other, Jp, Us, EU, Au, UK, Za, It
• Certificates: CE1023, ISO13485
• Country of Origin: China (Mainland)
• Port of Loading: Beijing
