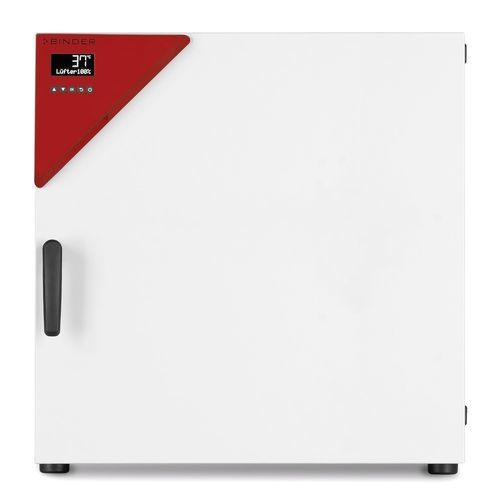

Natural convection laboratory incubator BD 115

benchtop1-doorheating

Product description
The BD 115 from the BD Avantgarde.Line is a laboratory incubator designed for gentle incubation of organisms and conditioning of heat-sensitive media. Its updated design and homogeneous temperature distribution support reproducible results.

Benefits

• Consistent temporal and spatial temperature accuracy
• Reliable process control and safety features
• Dedicated 100 °C disinfection routine

Key characteristics

• Temperature range: +5 °C above ambient to +100 °C
• APT.line™ temperature control technology
• Natural convection
• Controller with LCD display
• Electromechanical exhaust air flap control
• Inner door made of tempered safety glass
• 2 chrome-plated racks (standard), stackable
• Class 3.1 independent temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle
• USB port for data recording

Data (article numbers & designation)

• Article Number: 9010-0325 — Designation: BD115-230V
• Article Number: 9010-0326 — Designation: BD115UL-120V
• Option model: Standard

Performance data — Temperature

• Temperature range: +5 °C above ambient to 100 °C
• Temperature uniformity at 37 °C: 0.3 ± K
• Temperature uniformity at 100 °C: 1.0 ± K
• Temperature fluctuation at 37 °C: 0.1 ± K
• Temperature fluctuation at 100 °C: 0.3 ± K
• Heating time to 100 °C: 90 min
• Heating time to 37 °C: 55 min
• Recovery time after 30 s door opening at 37 °C: 15 min

Electrical data

• Article Numbers: 9010-0325 / 9010-0326
• Rated voltage: 230 V (9010-0325) / 120 V (9010-0326)
• Power frequency: 50/60 Hz (230 V) / 60 Hz (120 V)
• Nominal power: 0.35 kW
• Unit fuse: 6.3 A (230 V) / 12.5 A (120 V)
• Phase (nominal voltage): single-phase (1~)

Dimensions and weights

• Interior volume: 112 L
• Net weight (empty): 54 kg
• Load per rack: 30 kg (max)
• Permitted load (total): 150 kg
• Wall clearance back: 160 mm
• Wall clearance sidewise: 100 mm

Housing dimensions (net, not incl. fittings and connections)

• Width net: 710 mm
• Height net: 705 mm
• Depth net: 605 mm

Internal dimensions

• Interior width: 510 mm
• Interior height: 530 mm
• Interior depth: 420 mm
• Inner doors: 1
• Unit doors: 1

Environment-specific data

• Energy consumption at 100 °C: 150 Wh/h
• Energy consumption at 37 °C: 25 Wh/h

Fixtures

• Number of shelves (std./max.): 2/5

Options, accessories and services (examples)

• Access ports with silicone septa (various positions/diameters)
• Calibration certificates (9 / 15-18 / 27 points)
• Additional Pt100 temperature probe
• 4-20 mA analog output, alarm functions, Ethernet interfaces for APT-COM™
• Door locks, maintenance contracts and qualification services

Technical specifications

• Model: BD 115
• Series: BD Avantgarde.Line
• Temperature control: APT.line™
• Convection: Natural convection
• Control: LCD controller
• Safety: Class 3.1 independent temperature safety device (DIN 12880) with visual alarm
• Disinfection routine: 100 °C
• Data interface: USB
• Door: Inner tempered safety glass; ergonomic handle
• Racks: 2 chrome-plated (max. 5)
• Electrical: 230 V or 120 V variants; nominal power 0.35 kW
• External dimensions (net): W 710 × H 705 × D 605 mm
• Internal usable space: 112 L (W 510 × H 530 × D 420 mm)
• Net weight (empty): 54 kg
• Permitted load: 150 kg; load per rack 30 kg
• Clearance requirements: back 160 mm; sidewise 100 mm
• Article numbers: 9010-0325 (230 V), 9010-0326 (120 V)
