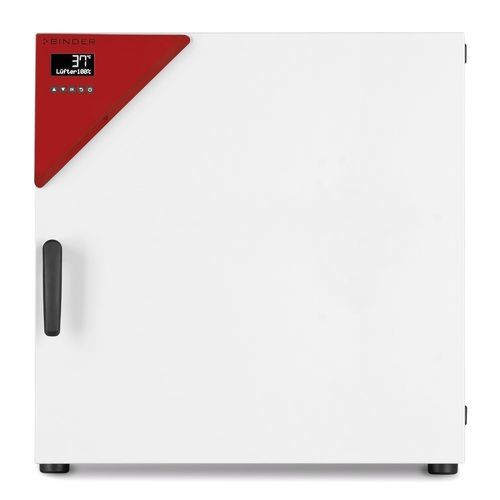

Forced convection laboratory incubator BF 115

benchtopstackable1-door

Product description
The BINDER incubator of the BF Avantgarde.Line series with forced convection is suitable for all gentle incubation applications, particularly under a full load and large batch throughputs. This incubator is extremely homogeneous and has quick recovery times.

Benefits

• Excellent temporal and spatial temperature accuracy
• High process reliability
• 100°C disinfection routine

Important characteristics

• Temperature range: +8°C above ambient temperature to +100°C
• High temperature accuracy thanks to APT.line™ technology
• Forced convection
• Controller with LCD display
• Electromechanical control of the exhaust air flap
• Inner door made of tempered safety glass
• 2 chrome-plated racks
• Stackable
• Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design
• USB port for recording data

Technical specifications (selected table data)
Article Number: 9010-0315; 9010-0316
Designation: BF115-230V; BF115UL-120V
Option model: Standard

Performance Data Temperature:
Temperature range: +8 °C above ambient temperature to 100 °C
Temperature uniformity at 37 °C: 0.3 ± K
Temperature uniformity at 100 °C: 1.6 ± K
Temperature fluctuation at 37 °C: 0.1 ± K
Temperature fluctuation at 100 °C: 0.2 ± K
Heating up time to 100 °C: 65 min
Heating up time to 37 °C: 8 min
Recovery time after door was opened for 30 s at 37 °C: 3 min

Electrical data:
Rated Voltage: 230 V (9010-0315) / 120 V (9010-0316)
Power frequency: 50/60 Hz (230 V) / 60 Hz (120 V)
Nominal power: 0.4 kW
Unit fuse: 6,3 A (230 V) / 12,5 A (120 V)
Phase (Nominal voltage): 1~

Dimensions and weights:
Interior volume: 114 L
Net weight (empty): 54 kg
Load per rack: 30 kg
Permitted load: 150 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm

Housing dimensions (net):
Width net: 710 mm
Height net: 725 mm
Depth net: 605 mm

Internal Dimensions:
Interior width: 550 mm
Interior height: 550 mm
Interior depth: 380 mm
Inner doors: 1
Unit doors: 1

Environment-specific data:
Sound-pressure level: 43 dB(A)
Energy consumption at 100 °C: 235 Wh/h
Energy consumption at 37 °C: 60 Wh/h

Fixtures:
Number of shelves (std./max.): 2/5

Caractéristiques / spécifications techniques

• Model: BF 115
• Temperature range: +8 °C above ambient to +100 °C
• Interior volume: 114 L
• Interior dimensions (W×H×D): 550 × 550 × 380 mm
• Housing dimensions (W×H×D): 710 × 725 × 605 mm
• Net weight (empty): 54 kg
• Rated voltage options: 230 V / 120 V
• Nominal power: 0.4 kW
• Temperature uniformity (37 °C): 0.3 ± K
• Temperature fluctuation (37 °C): 0.1 ± K
• Recovery time after 30 s door opening (37 °C): 3 min
• Number of standard shelves: 2 (max. 5)
• USB port for data recording
• Class 3.1 independent temperature safety device (DIN 12880) with visual alarm
