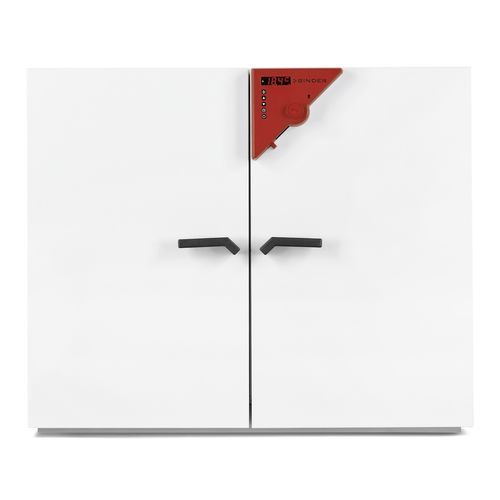

Natural convection laboratory incubator BD 400

benchtop2 doors

Product description
The BINDER BD series incubator with natural convection is designed for long-term, stable continuous operation. It is intended for gentle incubation of organisms and for conditioning heat-sensitive media.

Benefits

• Safe and reproducible incubation even with high batch throughputs in long-term operation
• Disinfection routine at 100 °C
• Stable interior atmosphere thanks to inner glass door

Important characteristics

• Temperature range: +5 °C above ambient temperature to +100 °C
• APT.line™ preheating chamber technology
• Natural convection
• Adjustable exhaust air flap
• Controller with timer functions
• Inner door made of tempered safety glass (ESG)
• 2 chrome-plated racks (standard)
• Class 3.1 independent temperature safety device (DIN 12880) with visual temperature alarm
• Computer interface: RS 422

Technical specifications

• Article Number: 9010-0073 (designation BD400-230V) / 9010-0176 (designation BD400UL-120V)
• Designation: BD400-230V (230 V) / BD400UL-120V (120 V)
• Option model: Standard
• Temperature range: +5 °C above ambient temperature to +100 °C
• Temperature uniformity at 37 °C: 0.5 ± K
• Temperature fluctuation at 37 °C: 0.1 ± K
• Heating up time to 37 °C: 120 min
• Recovery time after door opened for 30 s at 37 °C: 10 min
• Rated Voltage: 230 V (9010-0073) / 120 V (9010-0176)
• Power frequency: 50/60 Hz (230 V) / 60 Hz (120 V)
• Nominal power: 0.85 kW
• Unit fuse: 12.5 A
• Phase (Nominal voltage): 1~
• Interior volume: 400 L
• Net weight (empty): 135 kg
• Load per rack: 35 kg
• Permitted total load: 90 kg
• Wall clearance back: 160 mm
• Wall clearance sidewise: 100 mm
• Width net: 1,235 mm
• Height net: 1,025 mm
• Depth net: 765 mm
• Internal dimensions (W x H x D): 1,000 mm x 800 mm x 500 mm
• Unit doors: 2
• Number of shelves (std./max.): 2 / 9
• Energy consumption at 37 °C: 56 Wh/h
