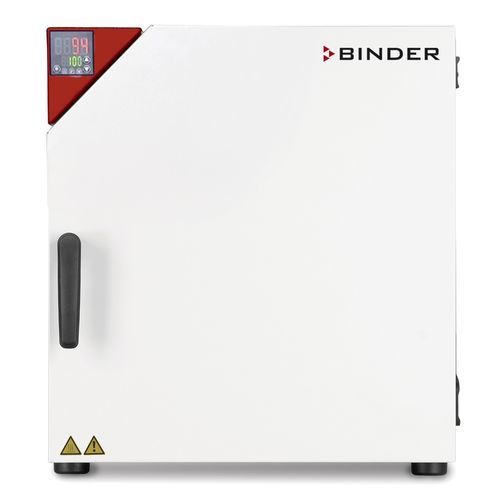

Natural convection laboratory incubator BD-S 56

for general purposesbenchtopnot specified

Product description
The Solid.Line BD-S 56 is a standard laboratory incubator designed for incubation, research and quality assurance. The new Solid.Line models combine proven BINDER quality and reliable temperature control for routine and research applications.

Benefits

• Easy handling
• Accurate temperature control
• Simple, ergonomic door opening

Important characteristics

• Temperature range: +5 °C above ambient to +70 °C
• APT.line™ preheating chamber technology
• Natural convection
• Adjustable exhaust air flap
• Controller with timer function
• Inner door made of tempered safety glass (ESG)
• 1 chrome‑plated rack included (shelf supports)
• Class 3.1 independent temperature safety device (DIN 12880) with visual alarm

Technical specifications (extracted tables)
Data: Article Number: 9090-0016 / 9090-0017
Designation: BDS056-230V / BDS056UL-120V
Option model: Standard

Performance data – Temperature: Temperature range: +5 °C above ambient temperature to +70 °C
Temperature uniformity at 37 °C: 0.5 ± K
Temperature fluctuation at 37 °C: 0.3 ± K
Heating time to 37 °C: 230 min
Recovery time after 30 s door opening at 37 °C: 15 min

Electrical data: Rated voltage: 230 V (article 9090-0016) / 120 V (article 9090-0017)
Power frequency: 50/60 Hz (230 V) / 60 Hz (120 V)
Nominal power: 0.3 kW
Unit fuse: 6.3 A (230 V) / 12.5 A (120 V)
Phase: 1~

Dimensions and weights: Interior volume: 62 L
Net weight (empty): 35 kg
Load per rack: 15 kg
Permitted load: 45 kg
Wall clearance back/sidewise: 160 mm / 100 mm

Housing dimensions (W×H×D): 614 × 625 × 577 mm
Internal dimensions (W×H×D): 400 × 440 × 350 mm
Inner doors / Unit doors: 1 / 1
Number of shelves (std./max.): 1 / 3
Energy consumption at 37 °C: 25 Wh/h

Technical characteristics – summary

• Model designation: BD-S 56
• Intended use: incubation, research and quality assurance
• Temperature range: ambient +5 °C … 70 °C
• Volume (usable): 62 L
• Inner dimensions (W×H×D): 400 × 440 × 350 mm
• Housing net dimensions (W×H×D): 614 × 625 × 577 mm
• Net weight (empty): 35 kg
• Nominal power: 0.3 kW; available voltages: 230 V (9090-0016) / 120 V (9090-0017)
• Number of shelves (std./max.): 1 / 3 (1 chrome‑plated rack supplied)
• Safety: Class 3.1 independent temperature safety device (DIN 12880) with visual alarm
