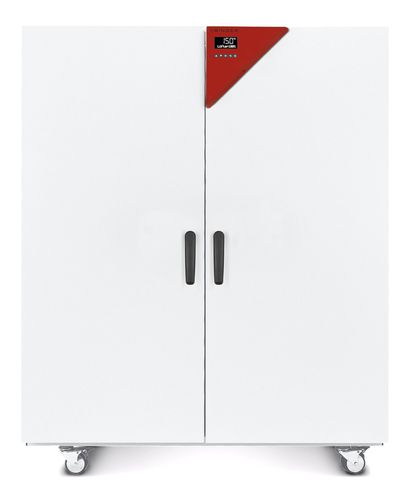

Natural convection laboratory incubator BD 720

mobilefloor-standingnot specified

Product description
The BD Avantgarde.Line BD 720 laboratory incubator is designed for gentle incubation of organisms and conditioning of heat‑sensitive media. The unit’s revised design and homogeneous temperature distribution support reproducible results for routine and research applications.

Benefits

• Excellent temporal and spatial temperature accuracy
• High process reliability for laboratory workflows
• 100 °C disinfection routine for in‑place decontamination

Important characteristics

• Temperature range: +5 °C above ambient temperature to +100 °C
• High temperature accuracy thanks to APT.line™ technology
• Natural convection
• Controller with LCD display
• Electromechanical control of the exhaust air flap
• Inner door made of tempered safety glass
• 2 chrome‑plated racks (standard)
• Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design
• USB port for recording data

Technical specifications

• Article Numbers (variants): 9010-0331; 9010-0332
• Designation (variant 9010-0331): BD720-230V
• Designation (variant 9010-0332): BD720UL-240V
• Option model: Standard
• Temperature range: +5 °C above ambient temperature to 100 °C
• Temperature uniformity at 37 °C: 0.7 ± K
• Temperature uniformity at 100 °C: 3.0 ± K
• Temperature fluctuation at 37 °C: 0.1 ± K
• Temperature fluctuation at 100 °C: 0.3 ± K
• Heating up time to 37 °C: 70 min
• Heating up time to 100 °C: 90 min
• Recovery time after door was opened for 30 s at 37 °C: 23 min
• Rated Voltage: 230 V (variant 9010-0331); 240 V (variant 9010-0332)
• Power frequency: 50/60 Hz
• Nominal power: 1.65 kW (230 V); 1.75 kW (240 V)
• Unit fuse: 16.0 A
• Phase (Nominal voltage): Single-phase (1~)
• Interior volume: 737 L
• Interior (net) dimensions (W×H×D): 960 × 1,280 × 600 mm
• Housing (net) dimensions (W×H×D): 1,165 × 1,590 × 870 mm
• Net weight of the unit (empty): 169 kg
• Load per rack: 45 kg
• Permitted total load: 315 kg
• Number of shelves (std./max.): 2 / 16
• Inner doors: 2
• Unit doors: 2
• Wall clearance back: 160 mm
• Wall clearance sidewise: 100 mm
• Energy consumption at 37 °C: 78 Wh/h
• Energy consumption at 100 °C: 480 Wh/h
