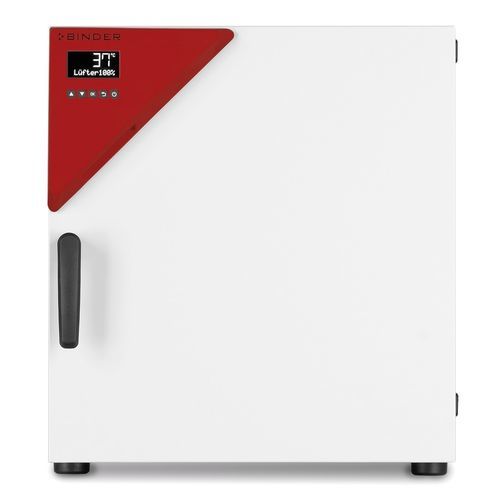

Forced convection laboratory incubator BF 56

benchtopstackablestainless steel

Product description
The BINDER BF Avantgarde.Line laboratory incubator with forced convection is designed for controlled-temperature incubation of sensitive samples, especially under full load and high batch throughput. The unit provides highly homogeneous temperature distribution and short recovery times.

Benefits

• Excellent temporal and spatial temperature accuracy
• High process reliability and integrated safety device (Class 3.1, DIN 12880)
• 100 °C disinfection routine

Important characteristics

• Temperature range: +7 °C above ambient to +100 °C
• APT.line™ technology for high temperature accuracy
• Forced convection (adjustable fan)
• Controller with LCD display and USB data port
• Electromechanical control of exhaust air flap
• Inner door made of tempered safety glass
• 2 chrome-plated racks (std.), stackable (max. 4)

Technical specifications — Data
Article Number: 9010-0313 / 9010-0314
Designation: BF056-230V / BF056UL-120V
Option model: Standard

Technical specifications — Performance Data Temperature
Temperature range: +7 °C above ambient to 100 °C
Temperature uniformity at 37 °C: 0.2 ± K
Temperature uniformity at 100 °C: 1.0 ± K
Temperature fluctuation at 37 °C: 0.1 ± K
Temperature fluctuation at 100 °C: 0.2 ± K
Heating up time to 100 °C: 35 min
Heating up time to 37 °C: 6 min
Recovery time after door opened 30 s at 37 °C: 3 min

Technical specifications — Electrical data
Rated Voltage: 230 V (9010-0313) / 120 V (9010-0314)
Power frequency: 50/60 Hz (230 V) / 60 Hz (120 V)
Nominal power: 0.4 kW
Unit fuse: 6.3 A (230 V) / 12.5 A (120 V)
Phase (Nominal voltage): 1~

Technical specifications — Dimensions and weights
Interior volume: 59 L
Net weight (empty): 39 kg
Load per rack: 30 kg
Permitted load: 70 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm

Technical specifications — Housing / Internal Dimensions
Width net: 560 mm
Height net: 625 mm
Depth net: 565 mm
Interior width: 400 mm
Interior height: 440 mm
Interior depth: 340 mm
Inner doors: 1
Unit doors: 1

Technical specifications — Environment-specific data
Sound-pressure level: 43 dB(A)
Energy consumption at 100 °C: 190 Wh/h
Energy consumption at 37 °C: 55 Wh/h

Technical specifications — Fixtures
Number of shelves (std./max.): 2/4

Options, accessories & services (selected examples)

• Inert gas connection (gas inlet/outlet, Ø 10 mm)
• Gas-tight option model (increased impermeability)
• Access port with silicone plug (various diameters/positions)
• Calibration certificates (temperature, various scopes)
• Ethernet interface for APT-COM™
• Pt 100 additional interior sensor
• Analog output 4-20 mA (temperature)
• Acoustic overheating alarm
• Door lock (lockable handle)
• Maintenance/service contracts (BRONZE / SILVER / GOLD), calibration and qualification services (IQ/OQ/PQ)
• Accessories: chrome or stainless steel racks, perforated shelves, mobile table, APT-COM™ software, detergent

Technical summary / specifications

• Model: BF 56 (Avantgarde.Line)
• Temperature range: +7 °C above ambient to +100 °C
• APT.line™ technology for high temperature accuracy
• Forced convection, adjustable fan
• Controller: LCD display, USB data export
• Independent temperature safety device: Class 3.1 (DIN 12880) with visual alarm
• Interior volume: 59 L; Net dimensions (W×H×D): 560 × 625 × 565 mm
• Interior dimensions (W×H×D): 400 × 440 × 340 mm; Net weight: 39 kg
• Standard shelves: 2 (max. 4); max. load per rack: 30 kg; permitted total load: 70 kg
• Rated voltage/options: 230 V (9010-0313) or 120 V (9010-0314); Nominal power: 0.4 kW
• Sound-pressure level: 43 dB(A); Energy consumption: 55 Wh/h (37 °C) / 190 Wh/h (100 °C)
