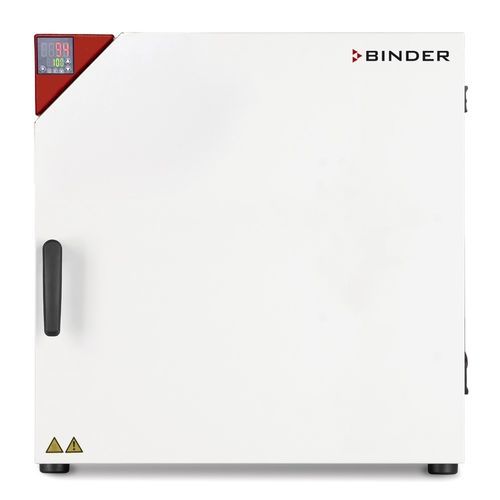

Natural convection laboratory incubator BD-S 115

for scientific researchbenchtop1-door

Product description
The Solid.Line BD-S 115 offers proven BINDER quality and reliability for incubation in research and quality assurance laboratories. It is designed for routine incubation tasks requiring precise temperature control and ergonomic operation.

Benefits

• Easy handling
• Accurate temperature control
• Simple, ergonomic door opening

Key characteristics

• Temperature range: +5 °C above ambient to +70 °C
• APT.line™ preheating chamber technology
• Natural convection
• Adjustable exhaust air flap
• Controller with timer function
• Inner door made of tempered safety glass
• 1 chrome-plated rack included (shelf supports)
• Class 3.1 independent temperature safety device (DIN 12880) with visual alarm

Technical specifications
General data
Article number: 9090-0022 | 9090-0023
Designation: BDS115-230V | BDS115UL-120V
Model: Standard

Performance data — Temperature
Temperature range: +5 °C above ambient to 70 °C
Temperature uniformity at 37 °C: 0.5 ± K
Temperature fluctuation at 37 °C: 0.3 ± K
Heating time to 37 °C: 250 min
Recovery time after 30 s door opening at 37 °C: 15 min

Electrical data
Rated voltage: 230 V | 120 V
Power frequency: 50/60 Hz | 60 Hz
Nominal power: 0.35 kW
Unit fuse: 6.3 A
Phase: 1~

Dimensions and weights
Interior volume: 118 L
Net weight (empty): 47 kg
Load per rack: 20 kg
Permitted load: 75 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm

Housing dimensions (without fittings)
Width: 765 mm
Height: 735 mm
Depth: 616 mm

Internal dimensions
Interior width: 550 mm
Interior height: 550 mm
Interior depth: 390 mm
Inner doors: 1
Unit doors: 1

Environment-specific data
Energy consumption at 37 °C: 25 Wh/h

Fixtures
Number of shelves (std./max.): 1/5

Options, accessories and services

• Chromed wire shelf with supports (ref. 8012-1808)
• Neutral cleaner (ref. 8012-2250)
• Rubber feet (ref. 8012-2030)
• Maintenance contracts (BRONZE / SILVER / GOLD), commissioning, calibration and certificates

Technical specifications summary

• Commercial model: BD-S 115
• Temperature range: +5 °C above ambient to 70 °C
• Interior volume: 118 L
• Internal dimensions (W×H×D): 550 × 550 × 390 mm
• External dimensions (W×H×D): 765 × 735 × 616 mm
• Net weight: 47 kg
• Nominal power: 0.35 kW
• Convection: natural
• Preheating technology: APT.line™
• Temperature safety device: Class 3.1 (DIN 12880)
• Shelves: 1 (max. 5)
